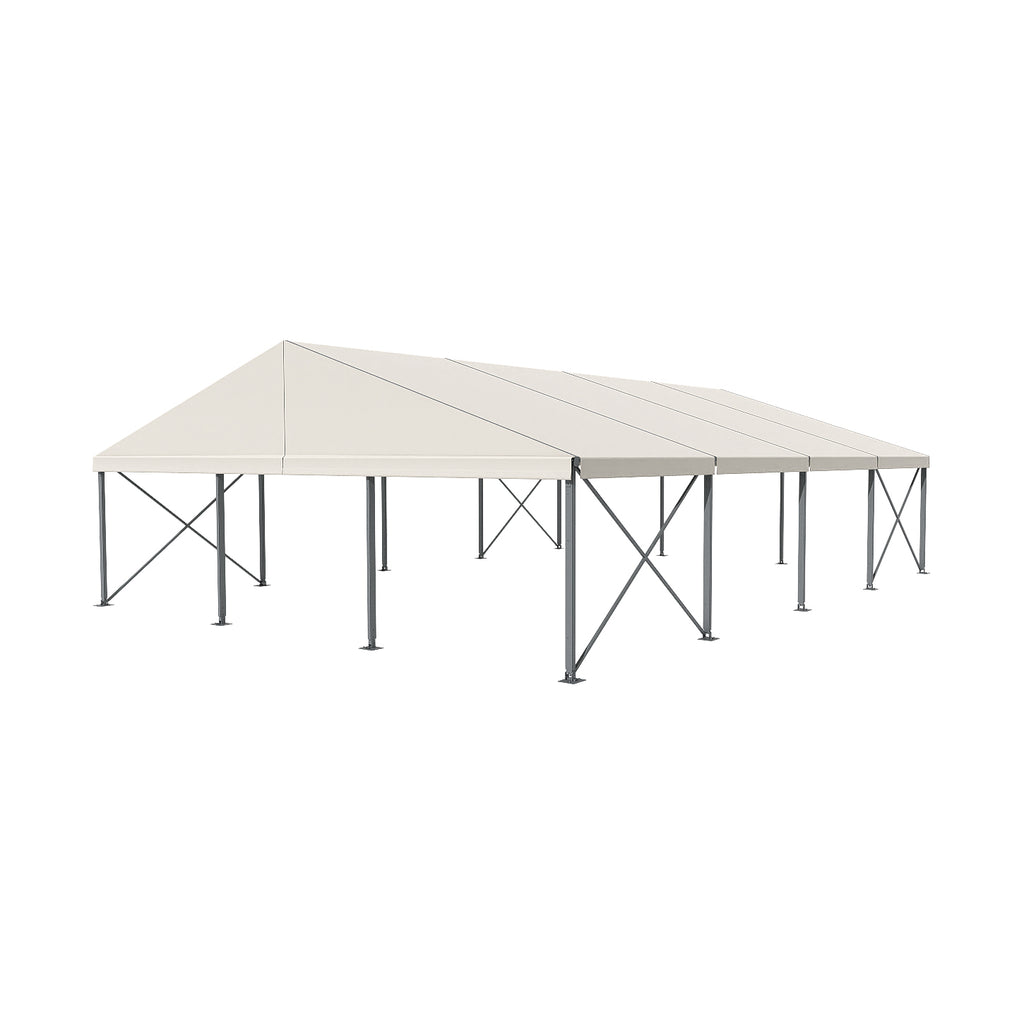

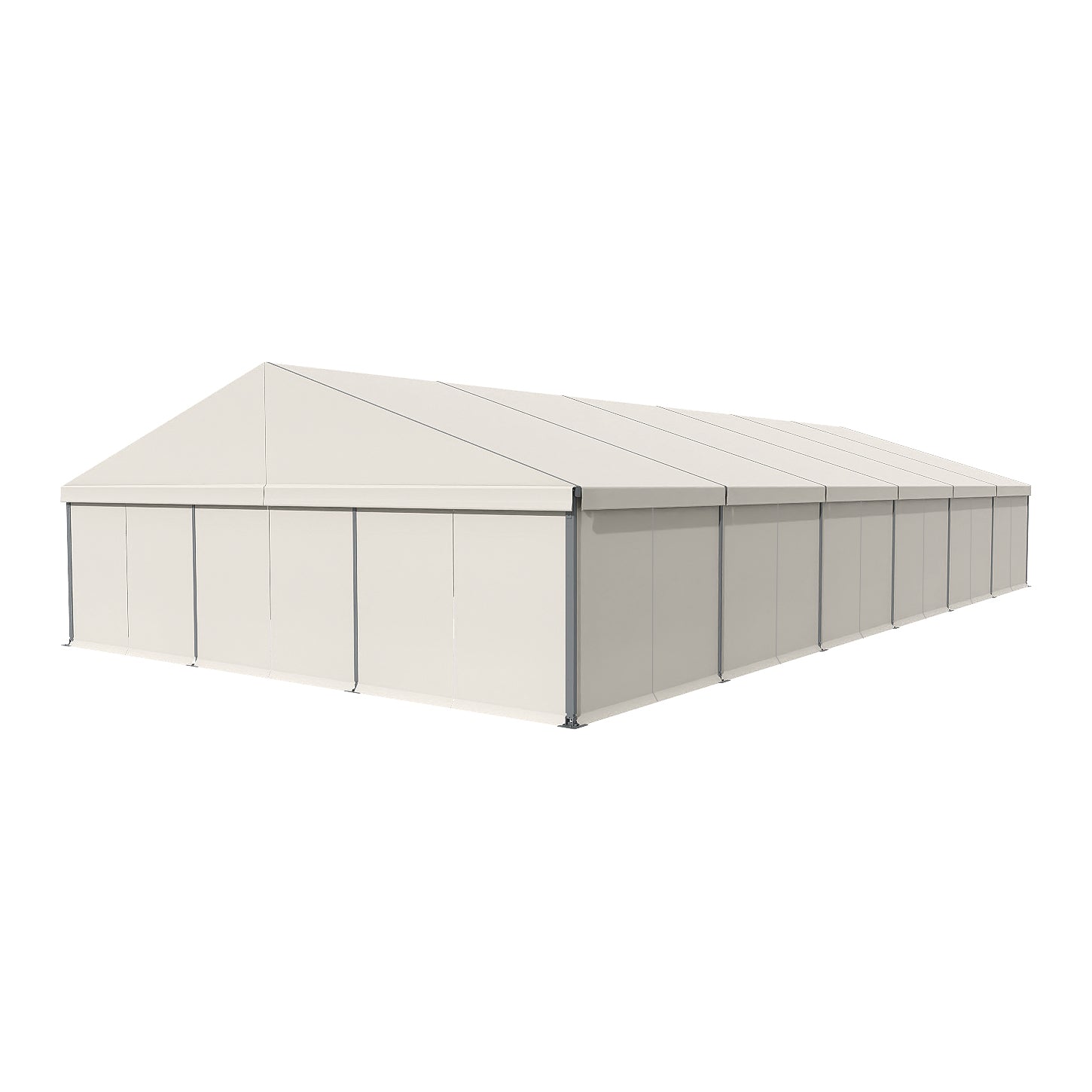

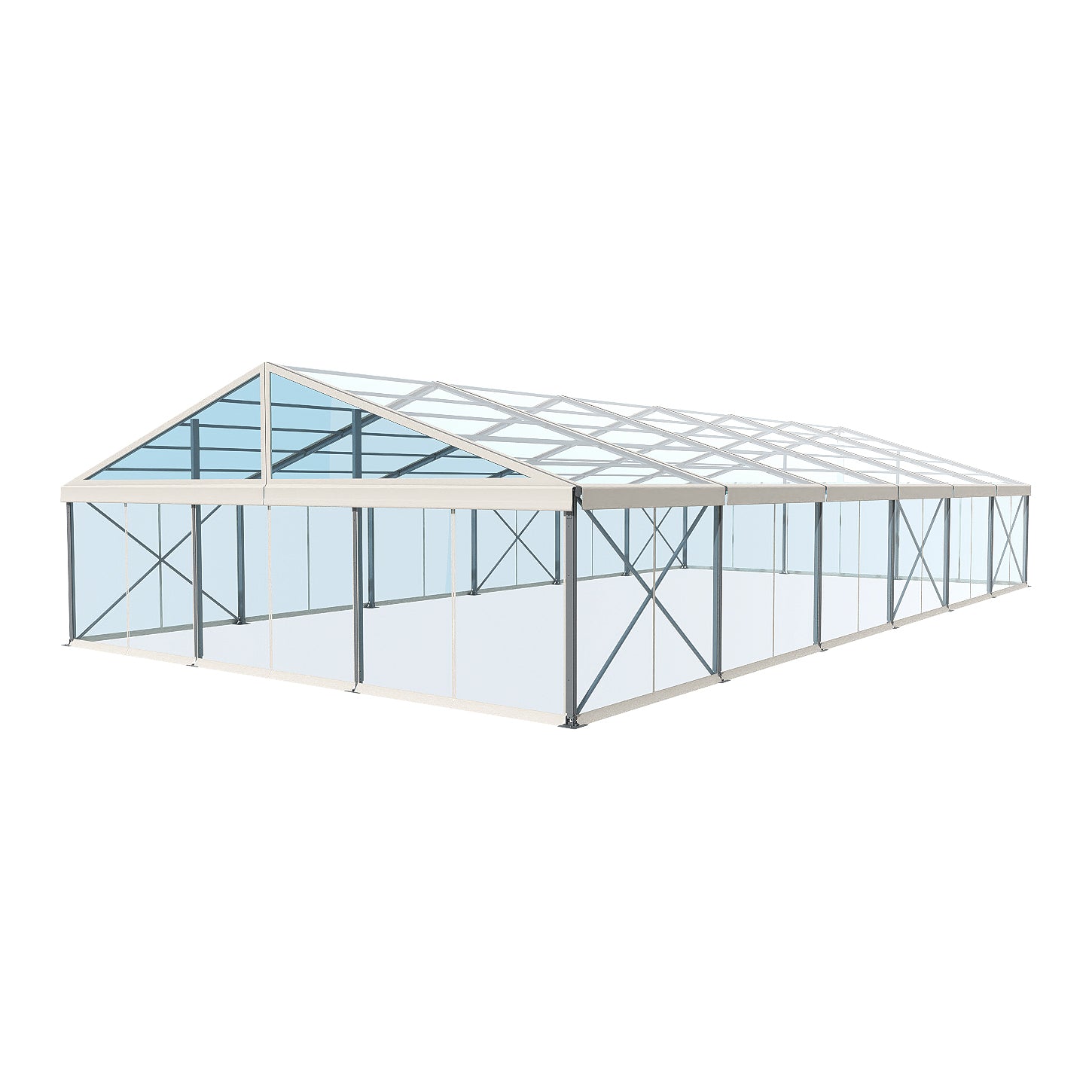

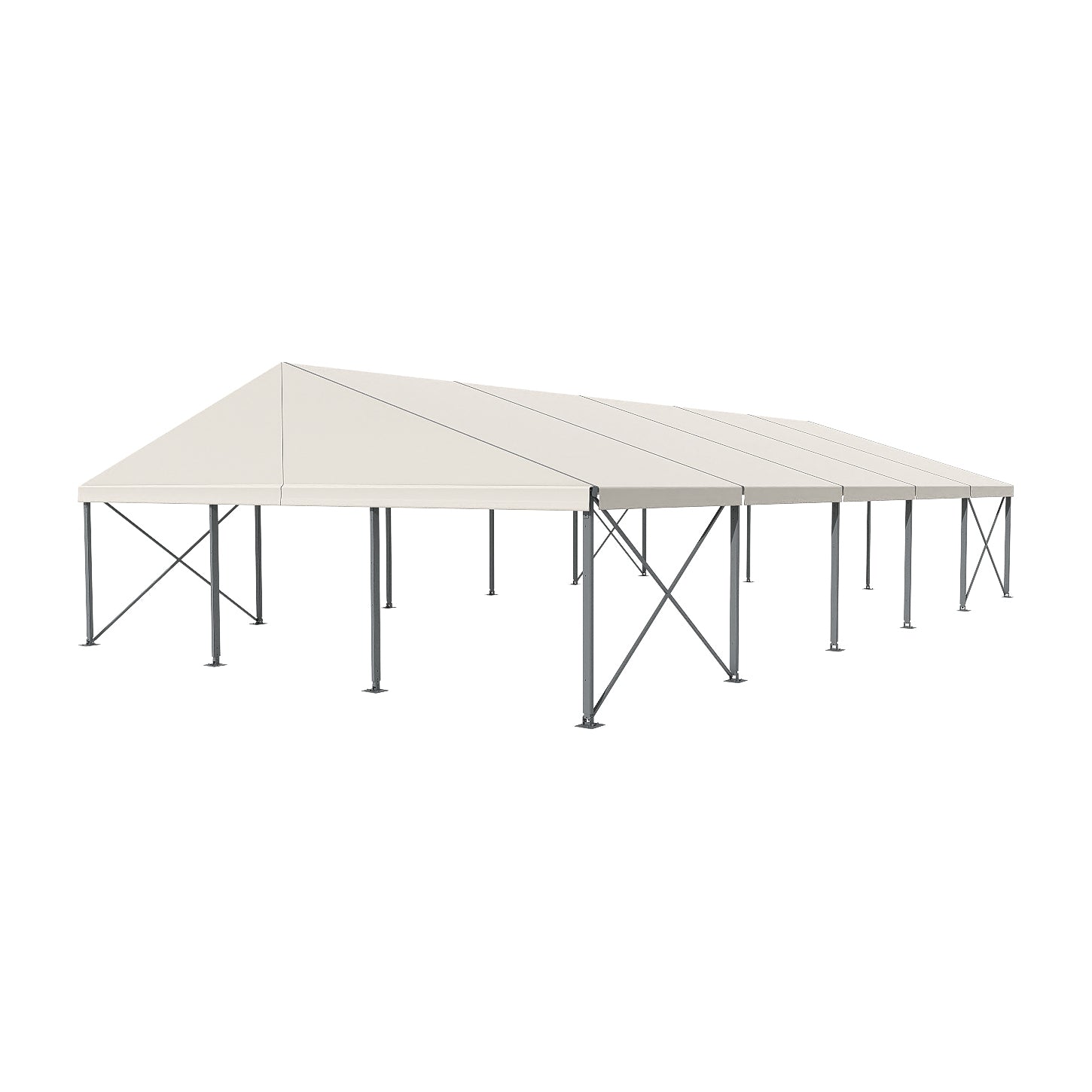

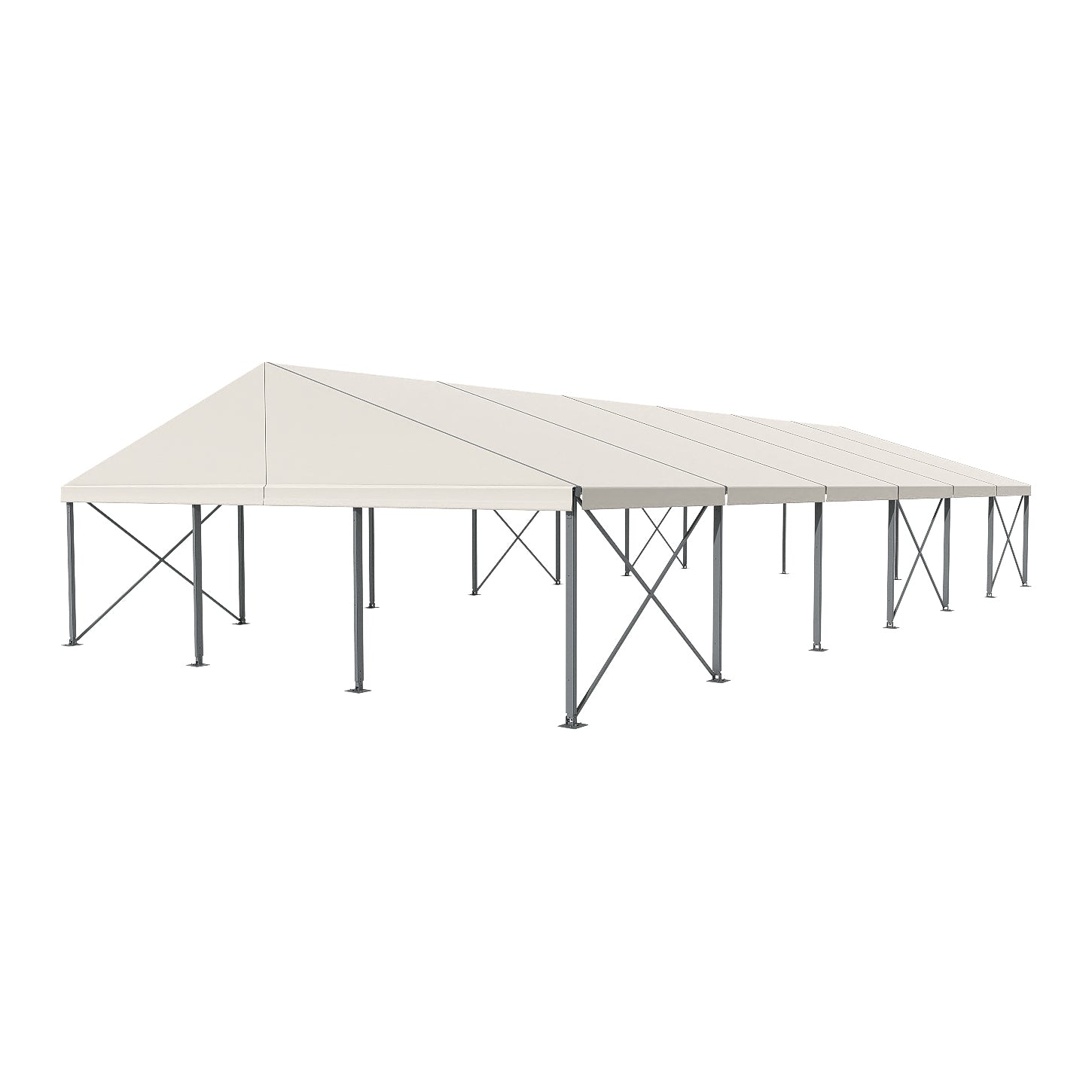

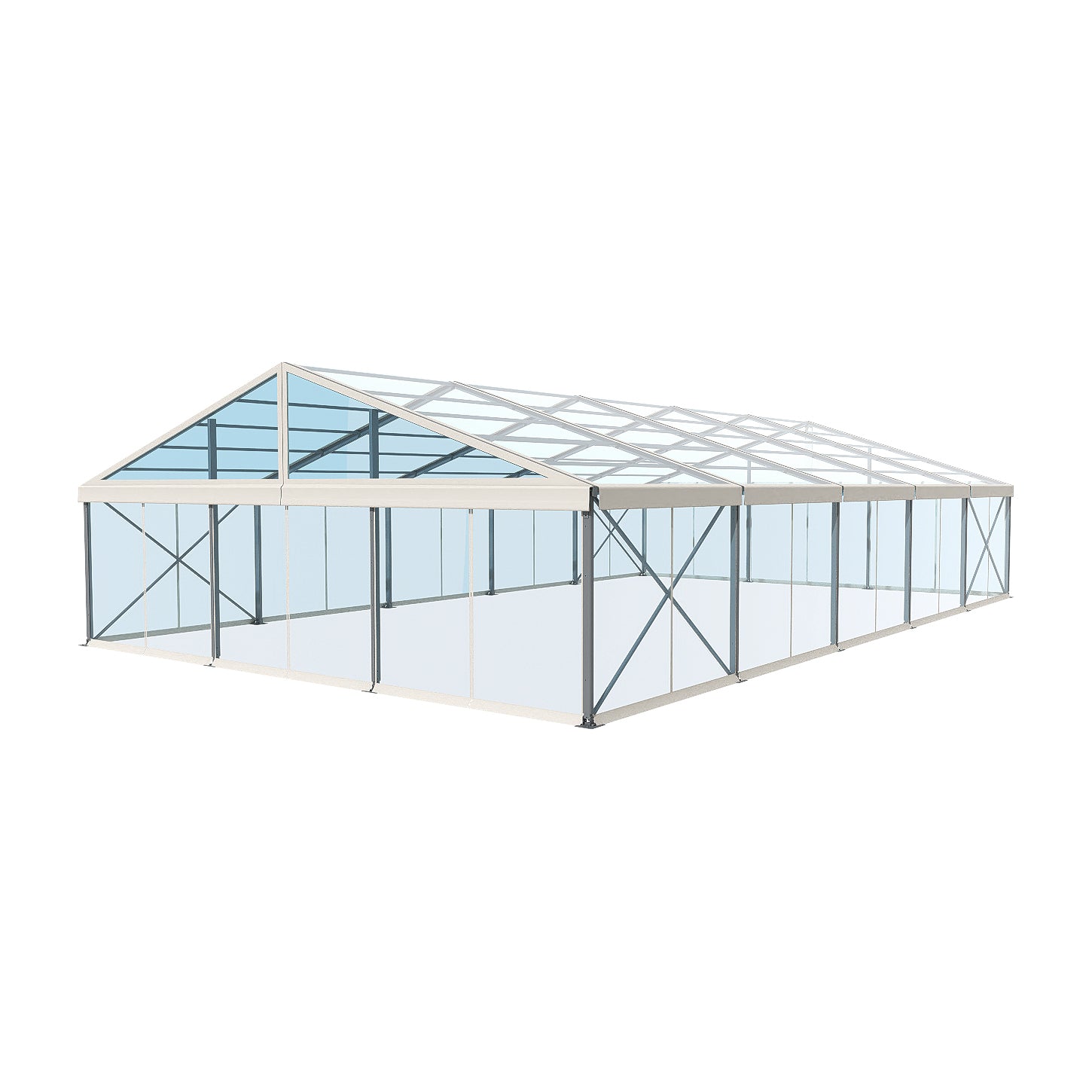

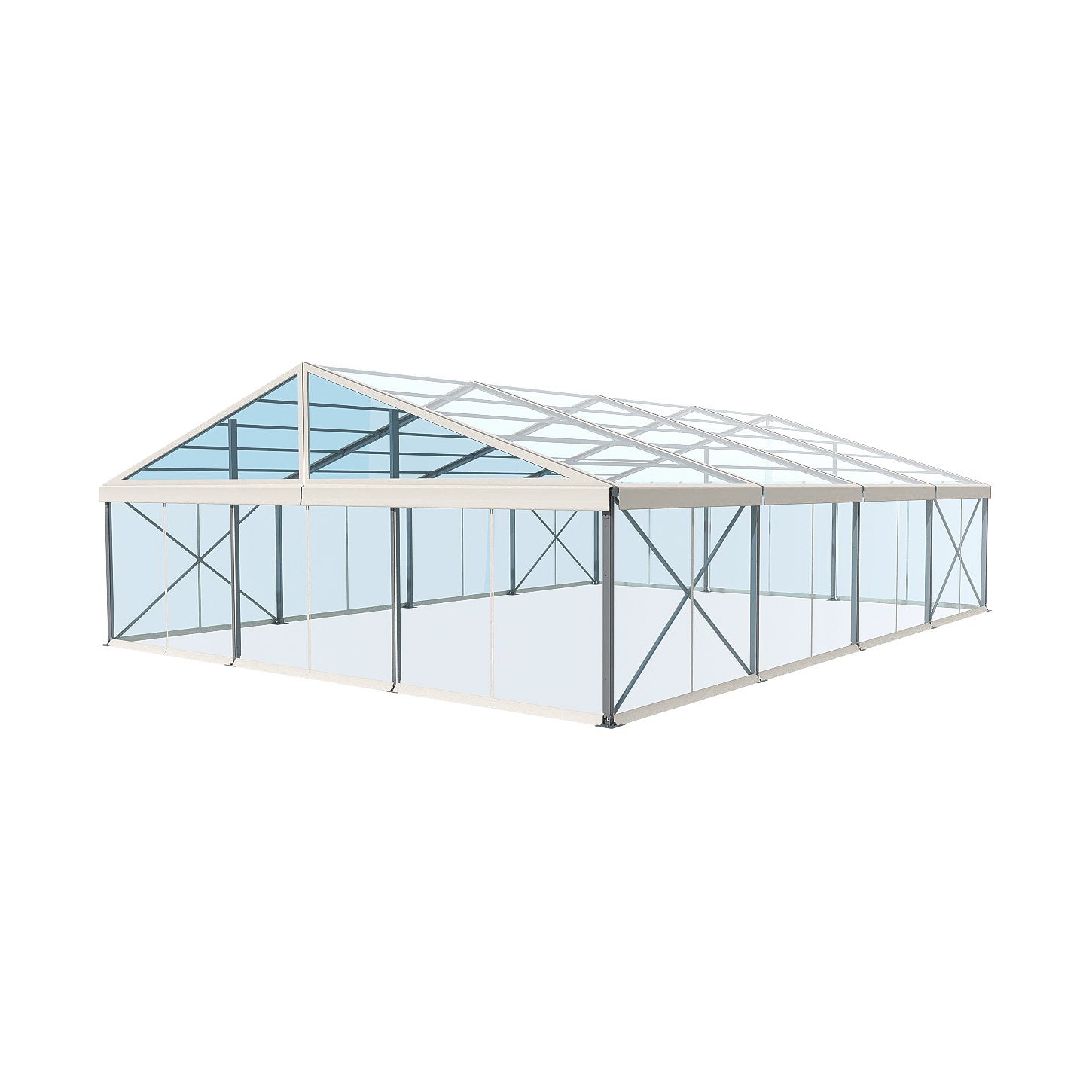

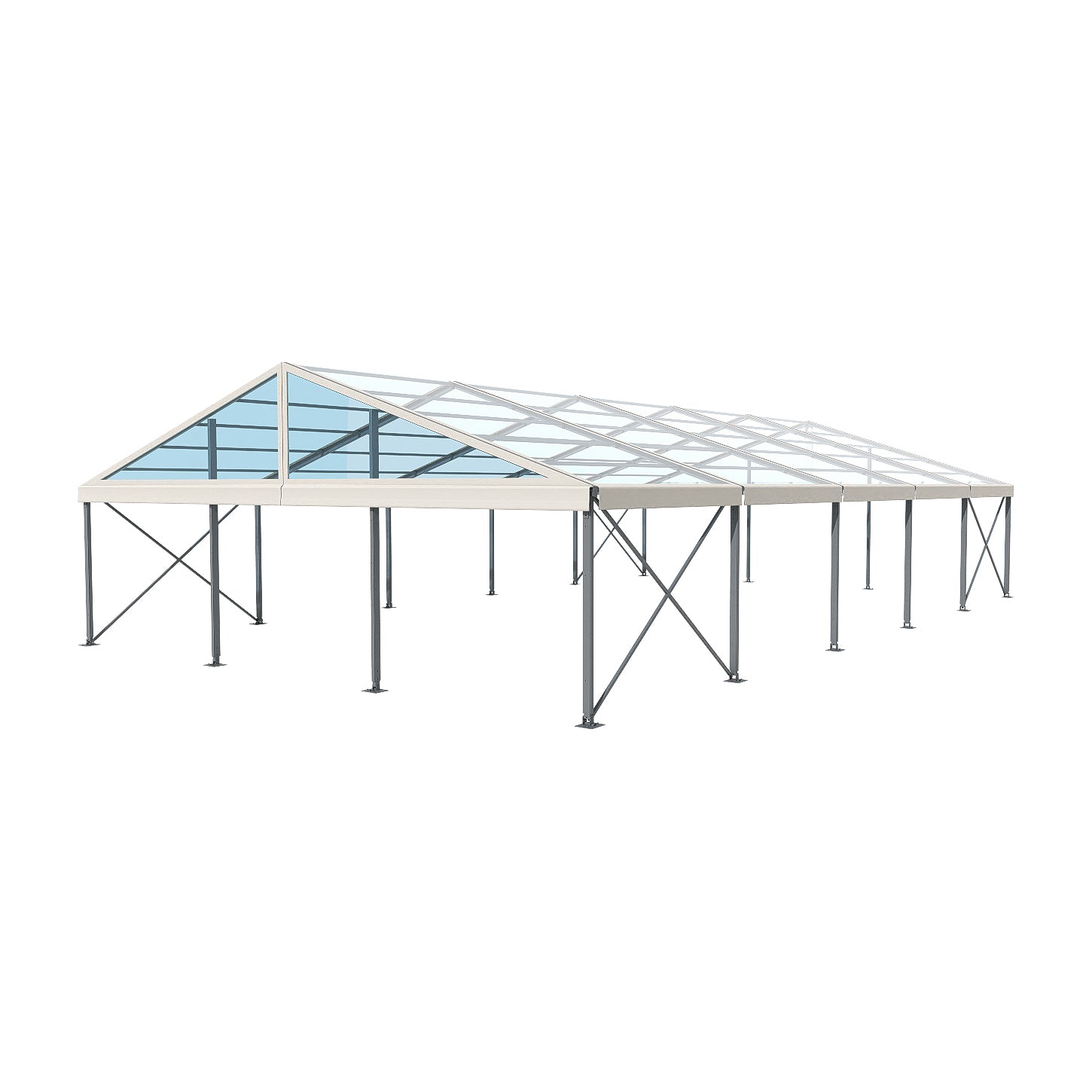

15m Wide Event Deluxe

The Event Deluxe (ED) Series is an ideal choice for use at outdoor exhibitions, business promotions, sports events, warehouses, workshops and emergency relief work.

Contact us for 10m / 12m wide.

Specification Sheet >    Instruction >   Product Comparison >    80kmhr Engineer Certification >    91.8kmhr UPGRADE Engineer >    PVC Fire Retardant Cert >

Clear Span Width	15m
Eave Height	3m
Ridge Height	4.49m
Roof Pitch	20º
Bay Distance	5m
Roof Fixing	Bar tensioning
Frame Profile	166 x 88 x 3mm (4-channel)
Max Allowed Windspeed	80km/hr 0.3kn/m2, 91.8km/hr
Eave Connectors	Hot-dip galvanized steel insert
Frame Material	Hard pressed extruded aluminium 6061/T6 (13HW)

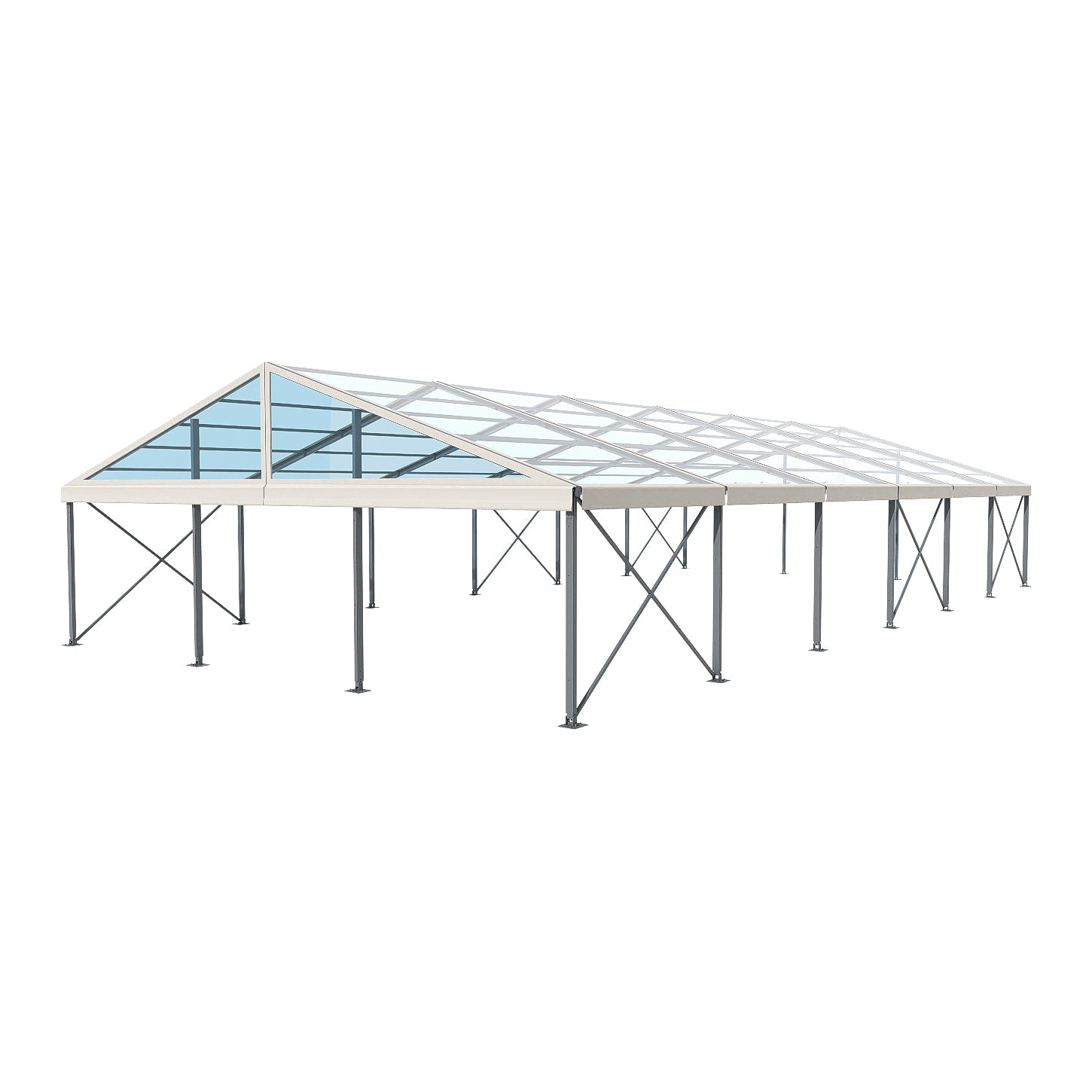

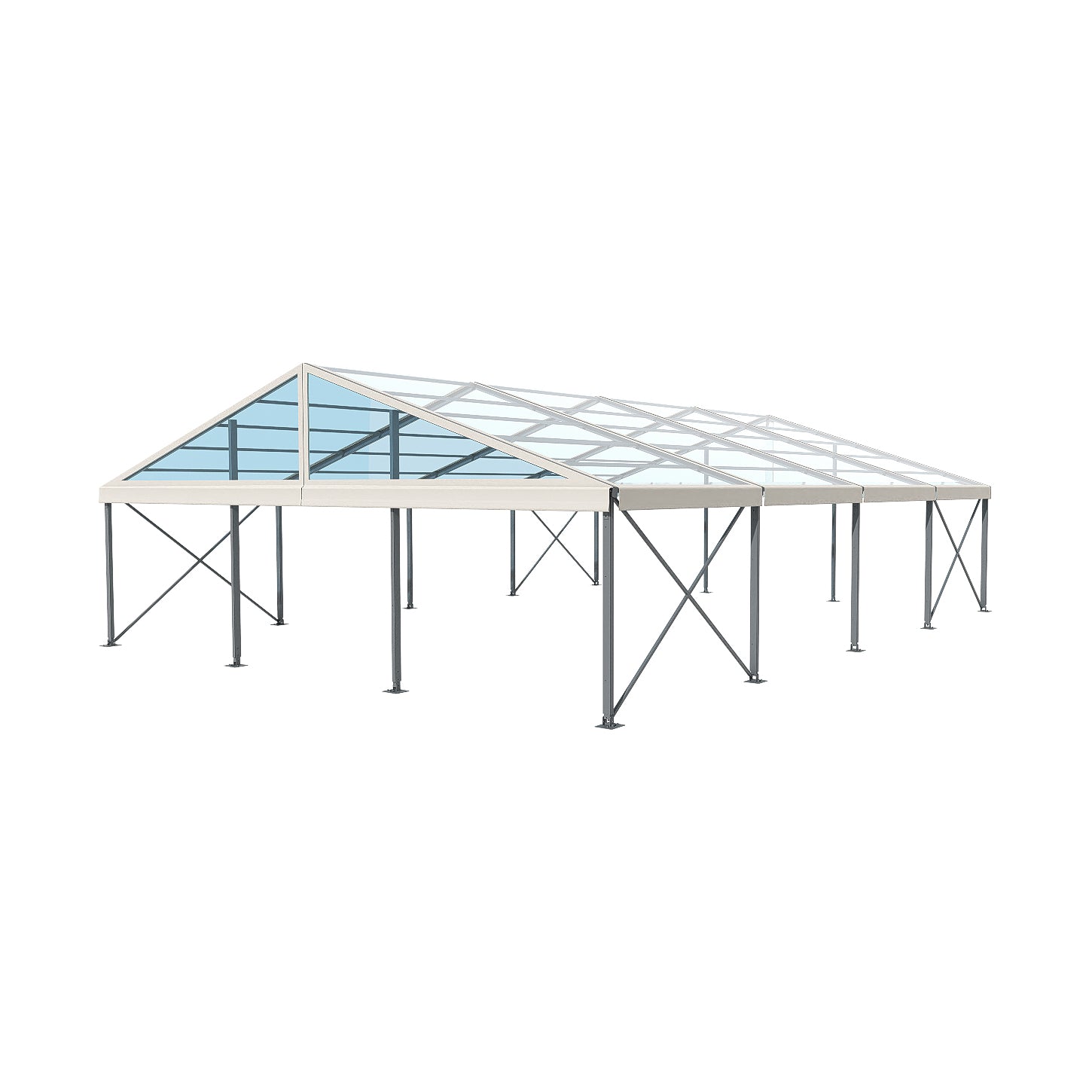

Roof Fabric	850gsm white or coloured PVC / 950gsm clear PVC / 650gsm white PVC
Frame Warranty	10 years
Roof Warranty	5 years white or coloured PVC / 2 years printed or clear PVC



Capacity Chart

Size	Area (sqm)	Cocktail Standing	Theatre Seating	Seating Trestle Table	Seating Round Table
15m x 20m	300	415	200	395	320-395
15m x 25m	375	515	250	490	400-490
15m x 30m	450	625	300	600	500-600

This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.



Theatre seating
Includes a 1m centre aisle and a 3m section at the front for presentation/ceremony

Trestle tables
2.4m trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables

Round tables
1.8m round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.



Add-on accessories available (contact us for pricing)
