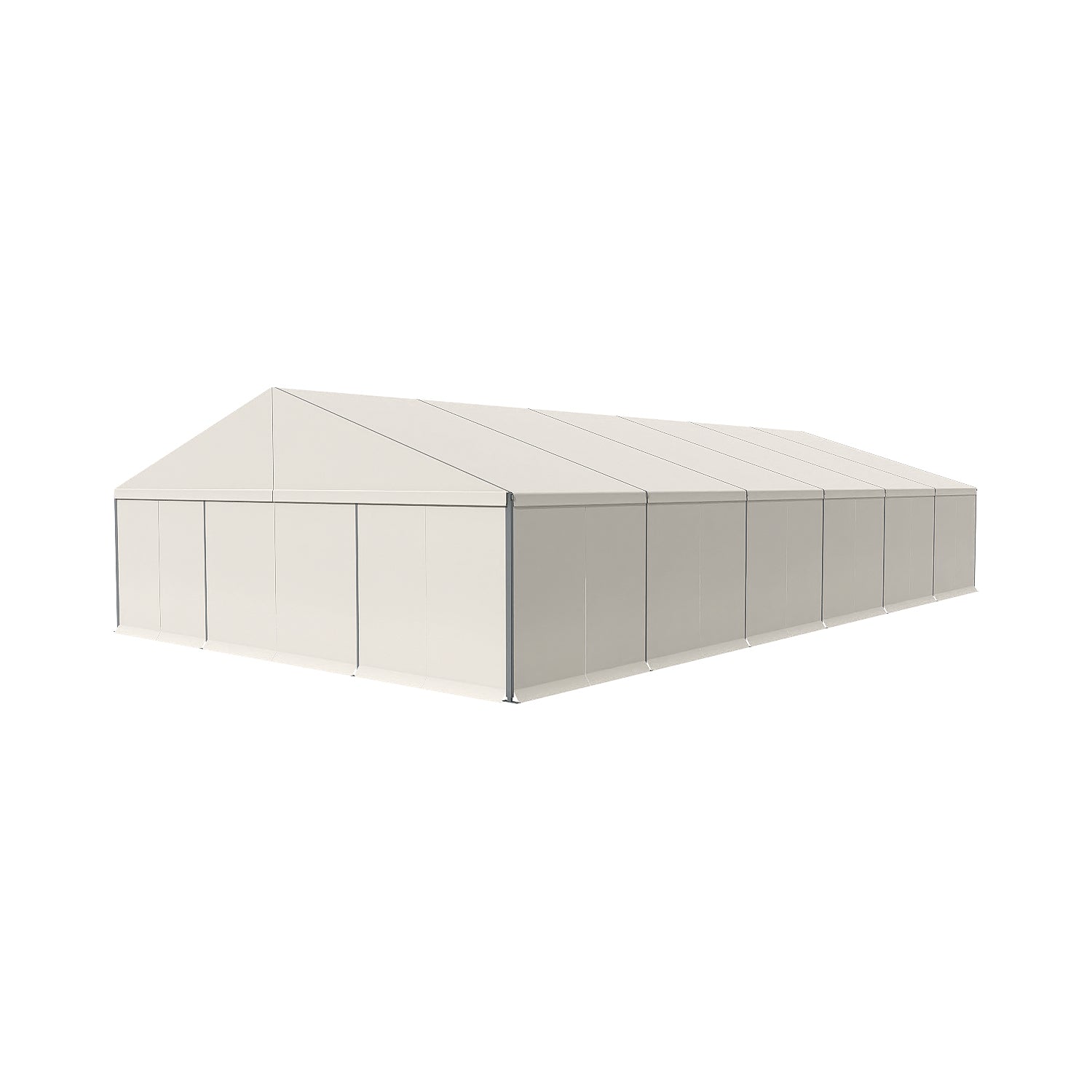

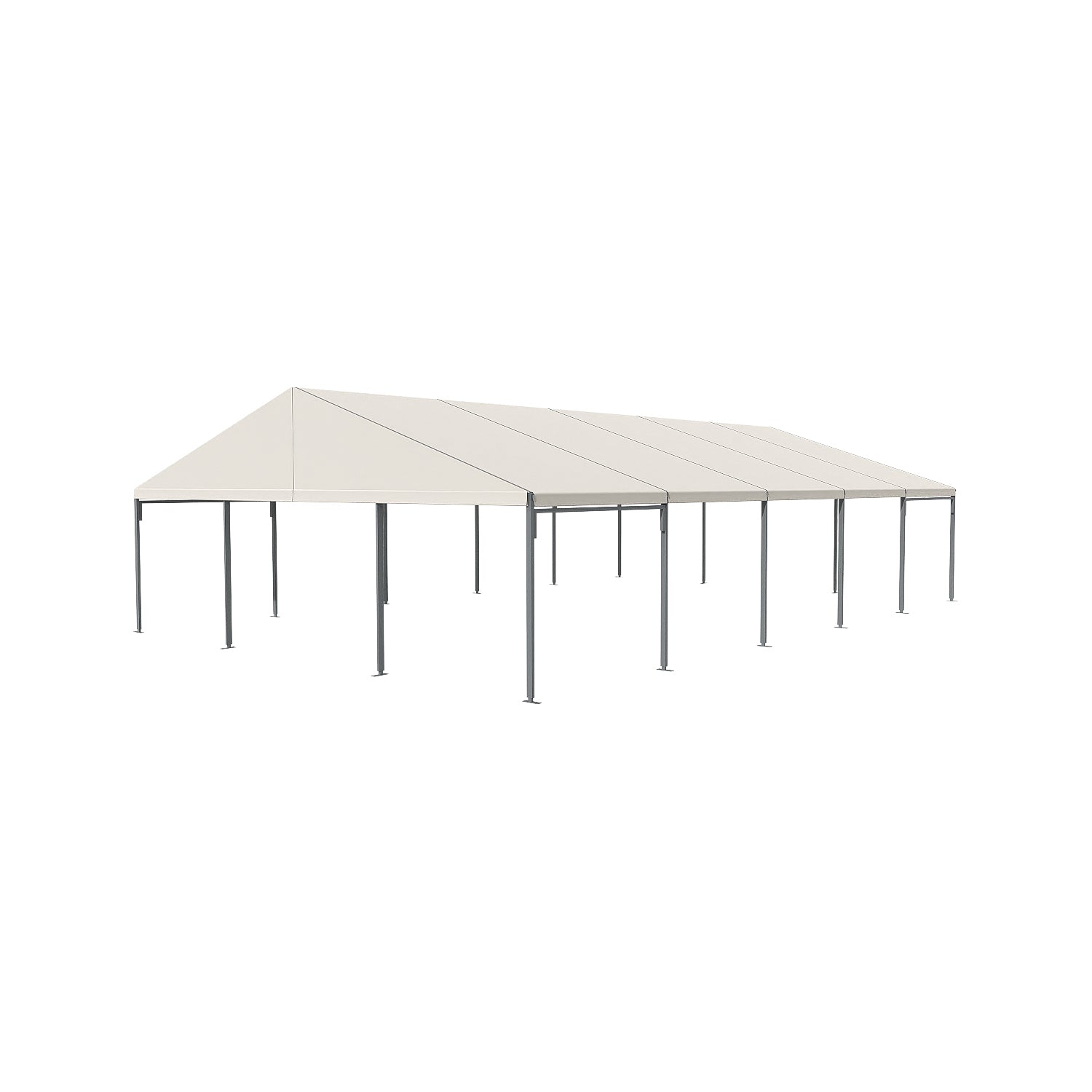

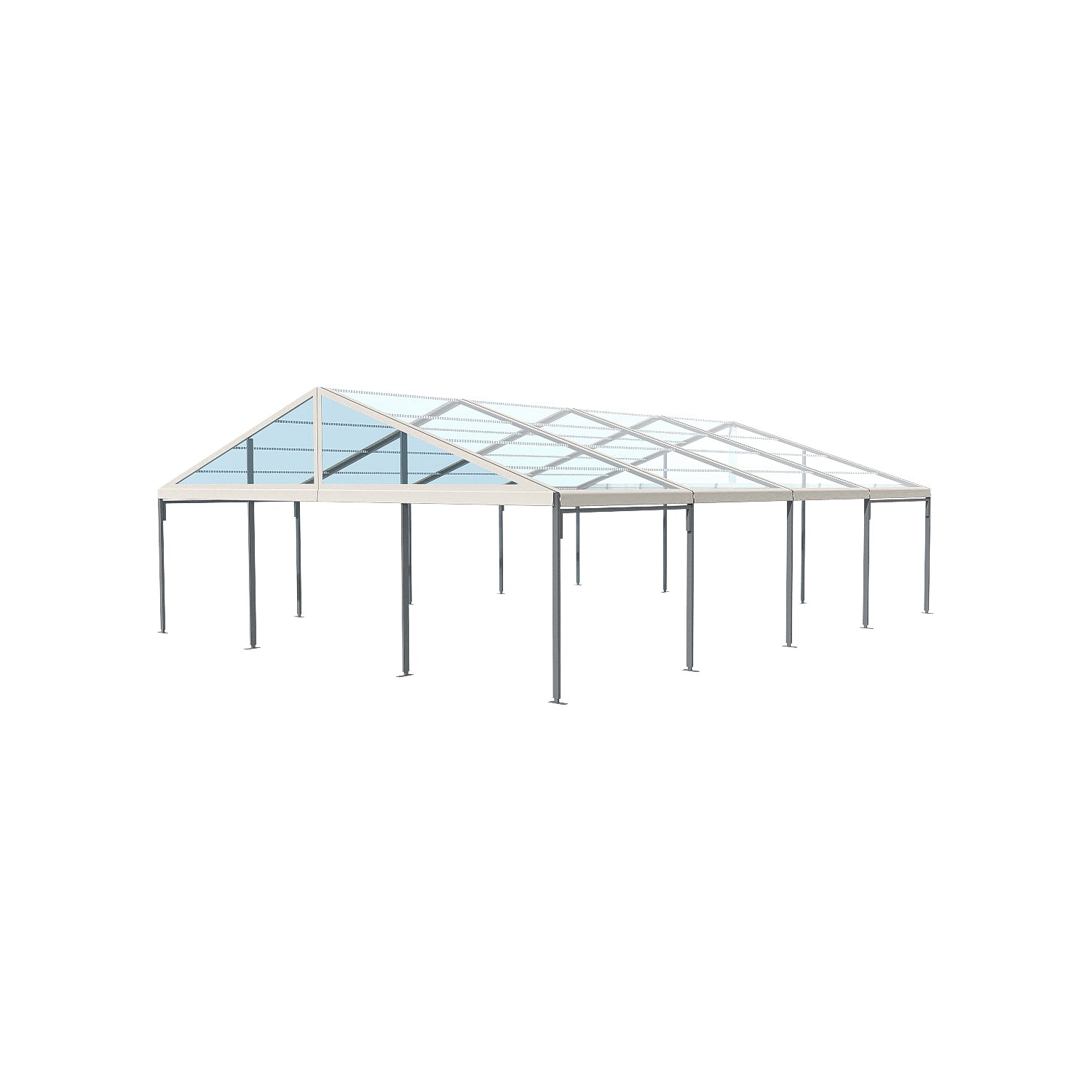

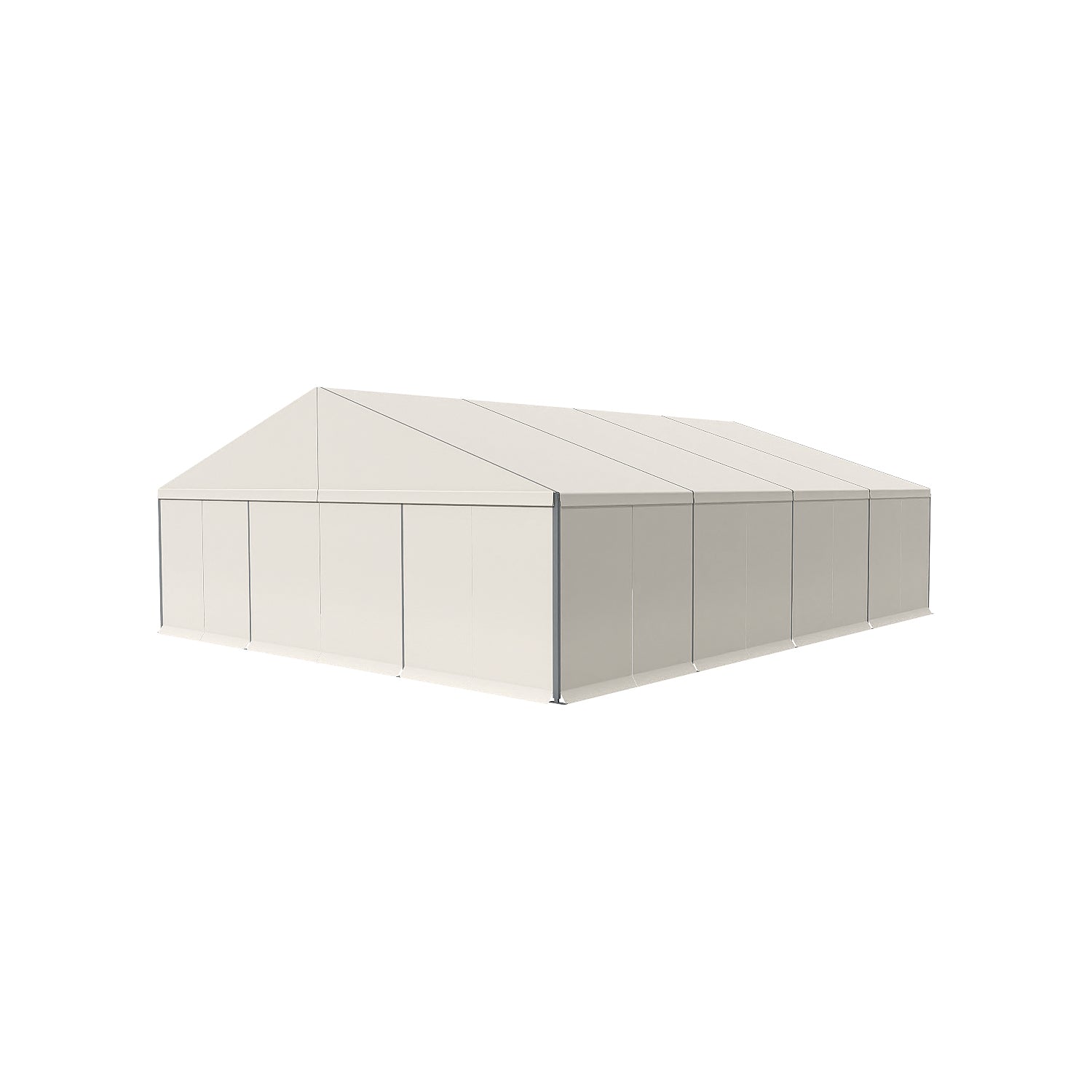

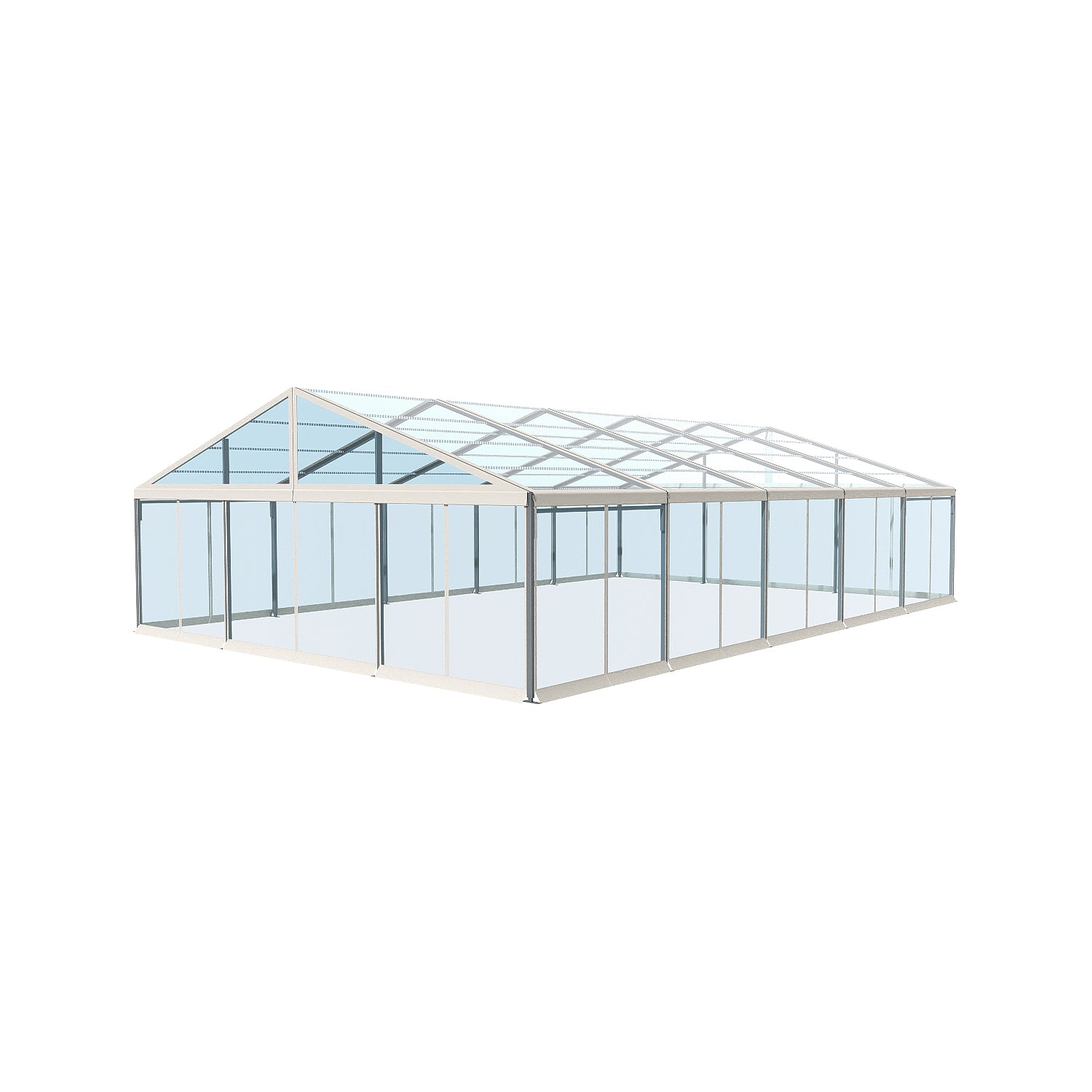

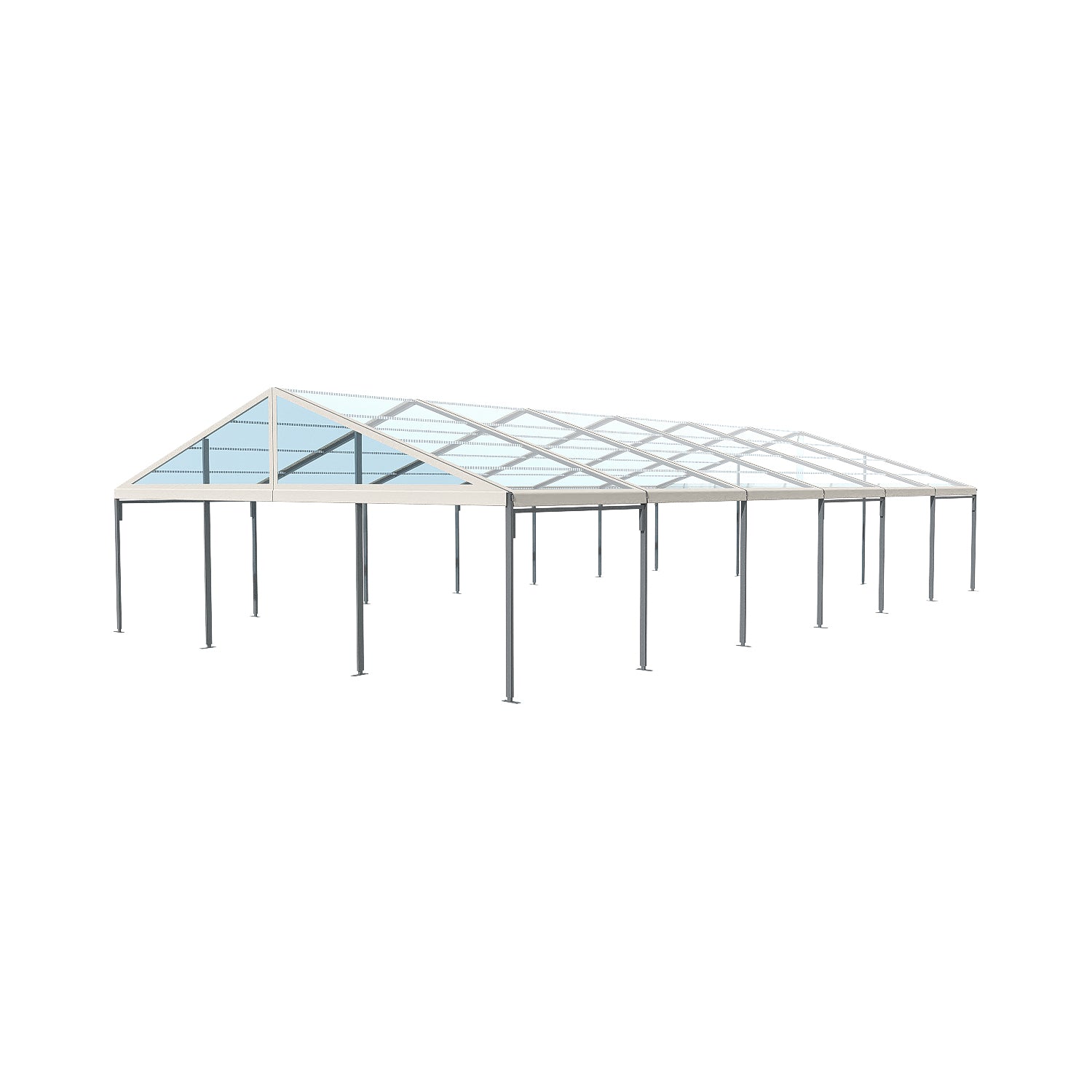

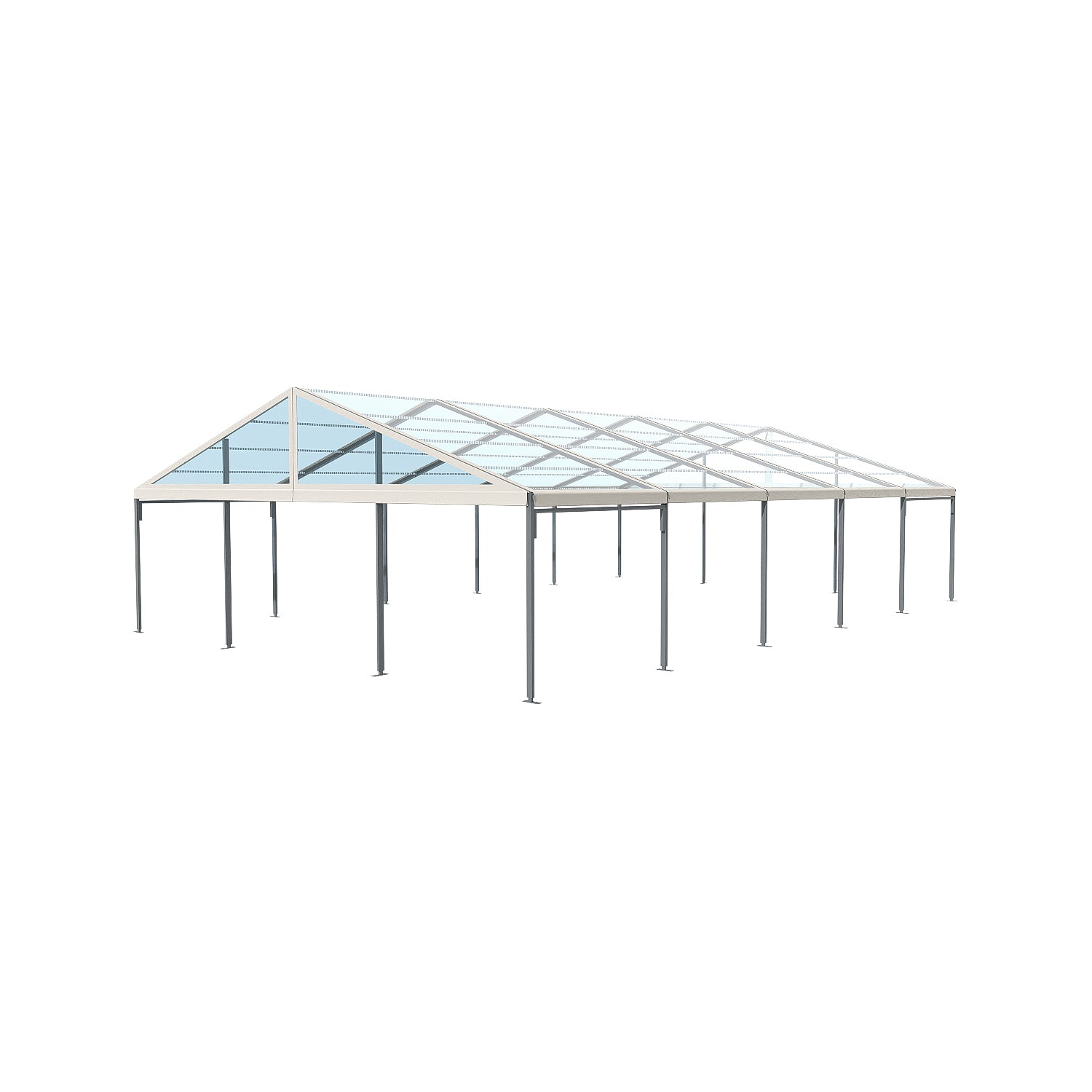

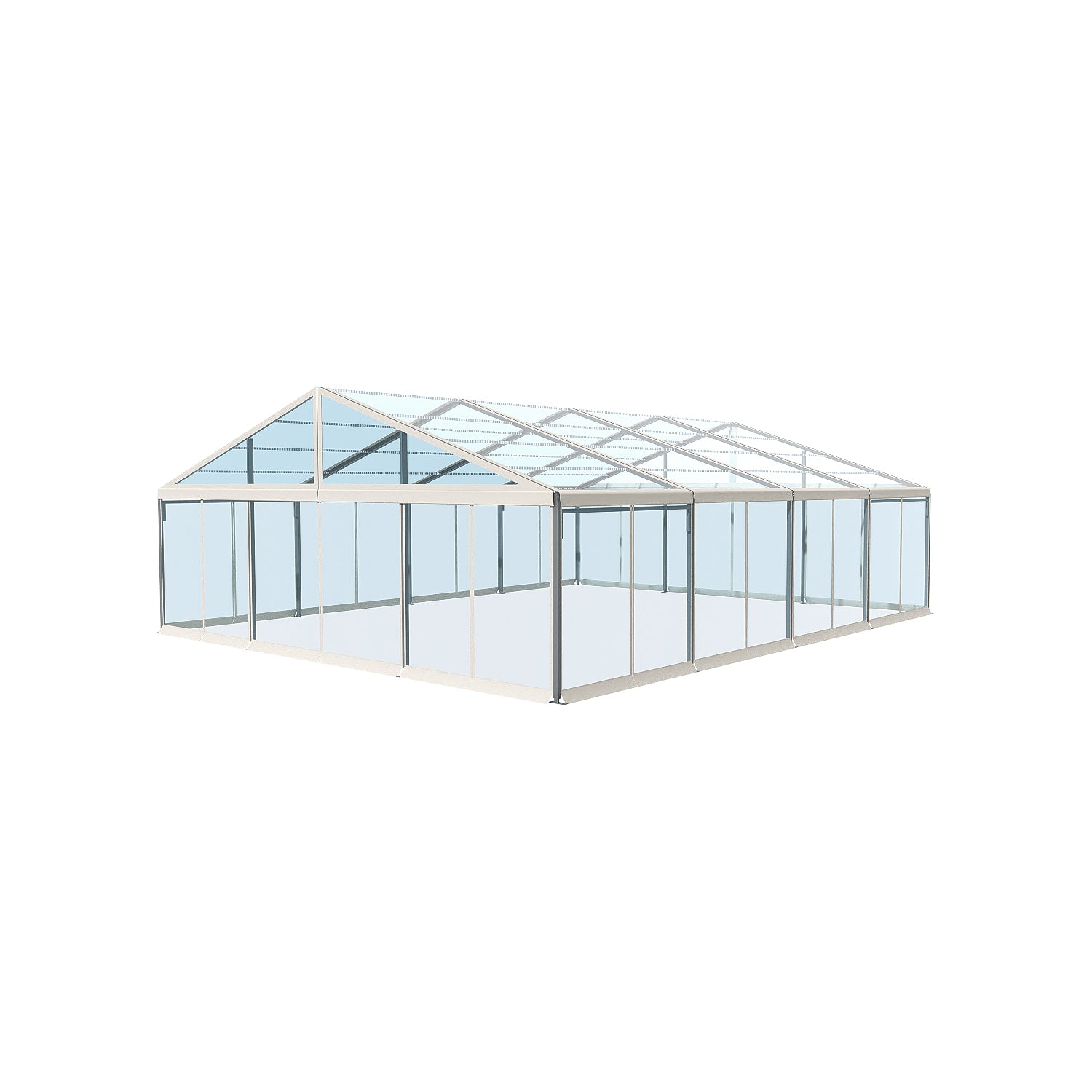

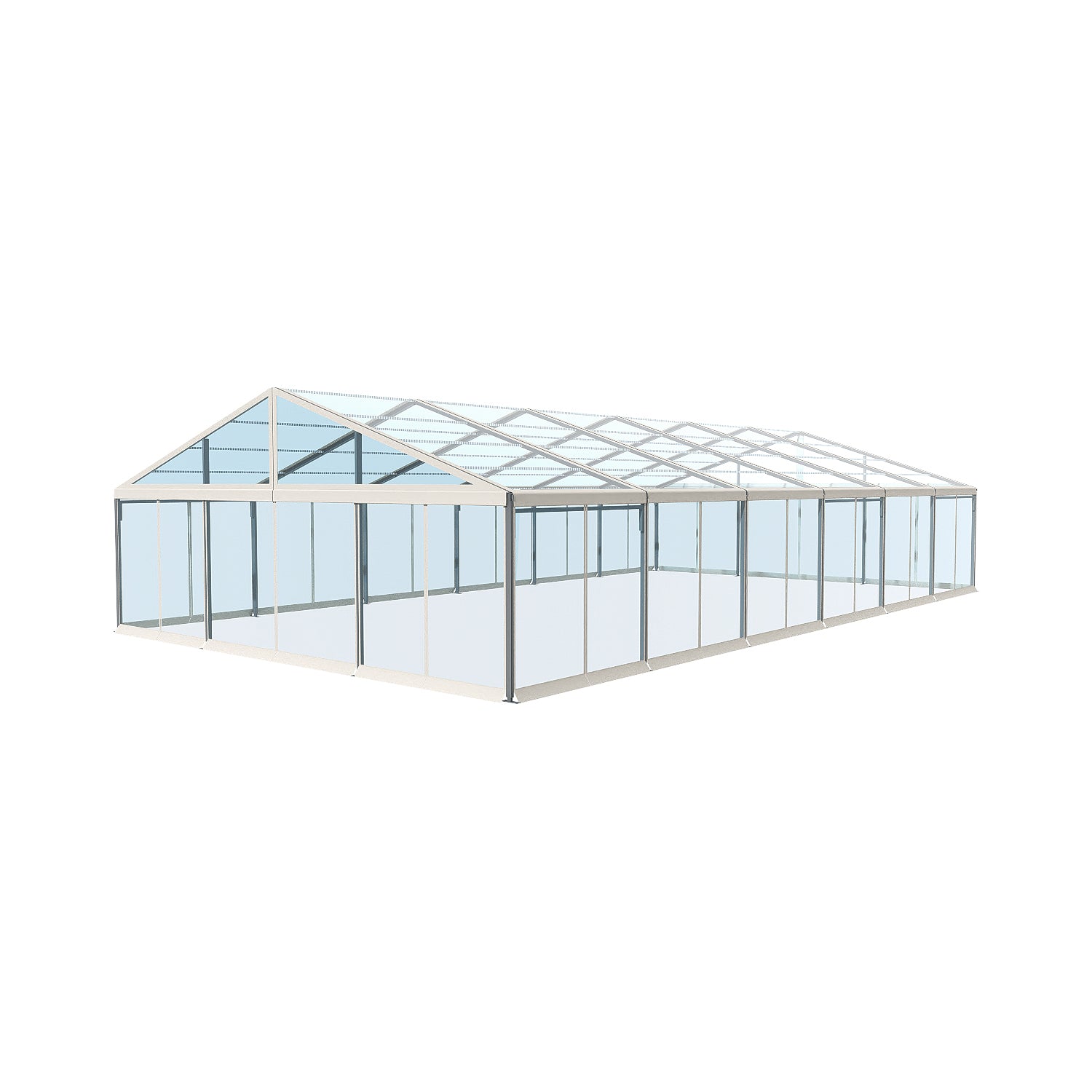

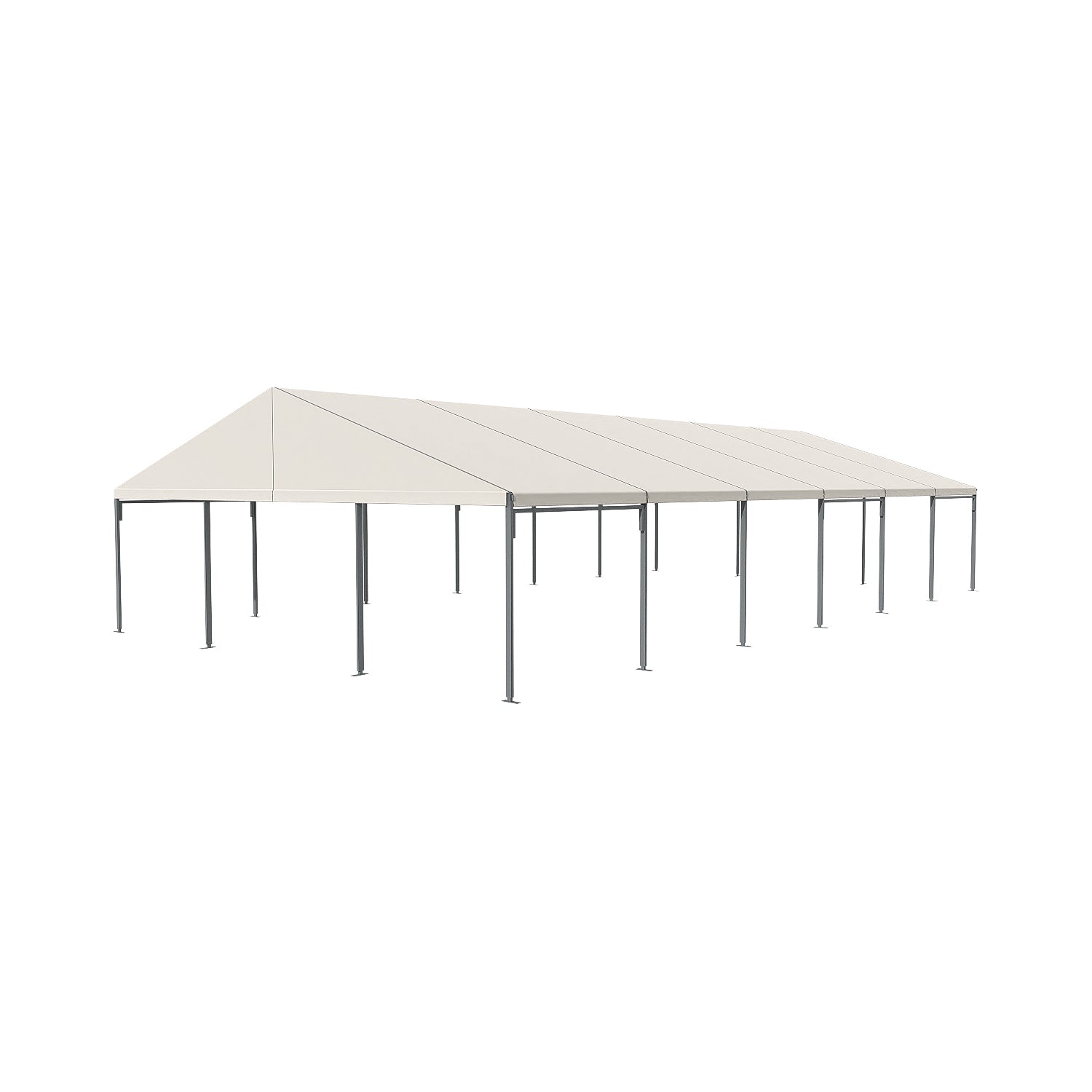

10m Wide (3m Bay) Function Deluxe

The Function Deluxe (FD) Series mirrors the traditional functionality of the FS and FS 2 with multiple key enhancements, including a sturdy 100mm X 48mm X 3mm framework, a roof tension system, and a new mounting for the sidewalls that improve weatherproofing.

Specification Sheet >    Instruction >    Product Comparison >    6m 8m 9m 10m 12m Engineer Cert >    PVC Fire Retardant Cert >

Clear Span Width	10m
Eave Height	2.6m
Ridge Height	4.53m
Roof Pitch	20º
Bay Distance	3m
Roof Fixing	Bar tensioning
Frame Profile	100 x 48 x 3mm (4-channel)
Max Allowed Windspeed	80km/hr 0.3kn/m2
Eave Connectors	Hot-dip galvanized steel insert
Frame Material	Hard pressed extruded aluminium 6061/T6 (13HW)
Roof Fabric	850gsm white or coloured PVC / 950gsm clear PVC / 650gsm white PVC
Frame Warranty	10 years
Roof Warranty	5 years white or coloured PVC / 2 years printed or clear PVC



Capacity Chart

Size	Area (sqm)	Cocktail Standing	Theatre Seating	Seating Trestle Table	Seating Round Table
10m x 12m	123	220	130	190	130-150
10m x 15m	153	275	165	240	165-195
10m x 18m	184	330	195	290	195-230

This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.



Theatre seating
Includes a 1m centre aisle and a 3m section at the front for presentation/ceremony

Trestle tables
2.4m trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables

Round tables
1.8m round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.



Add-on accessories available (contact us for pricing)
