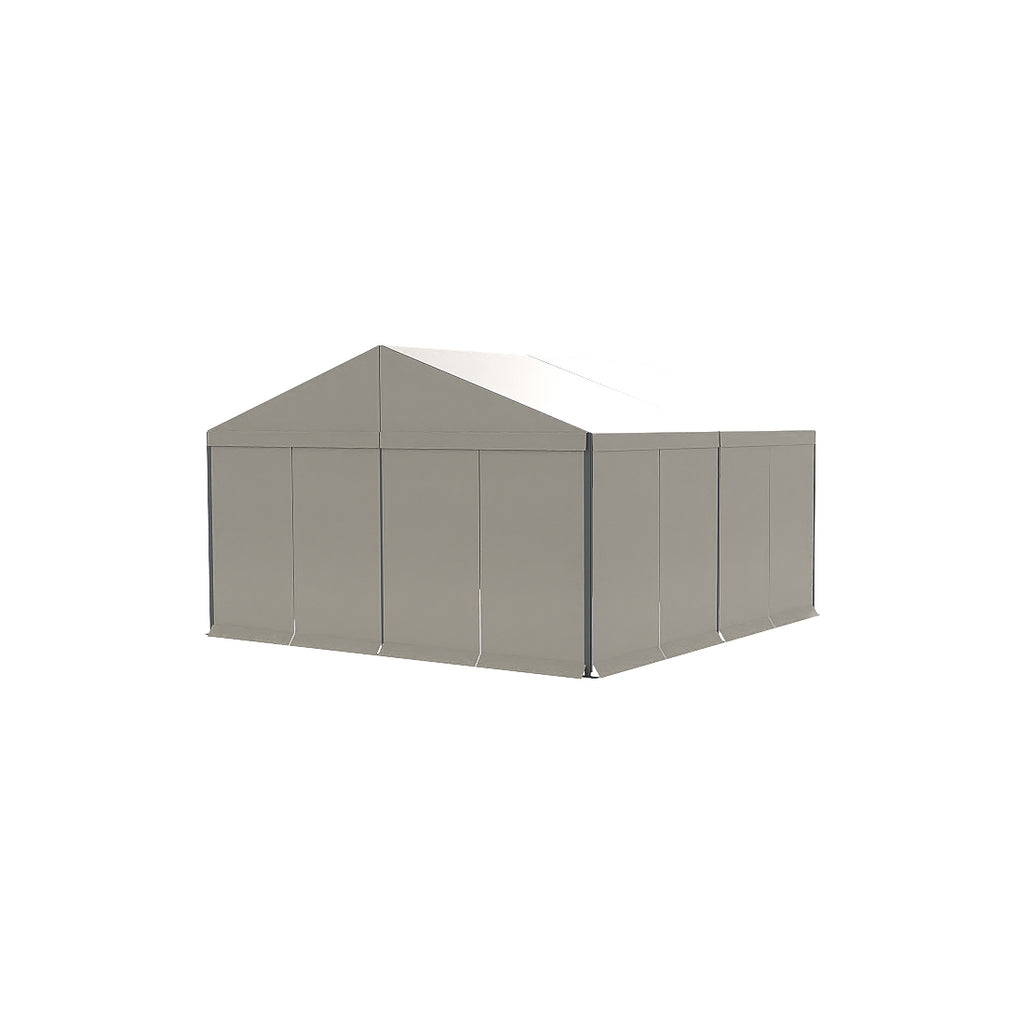

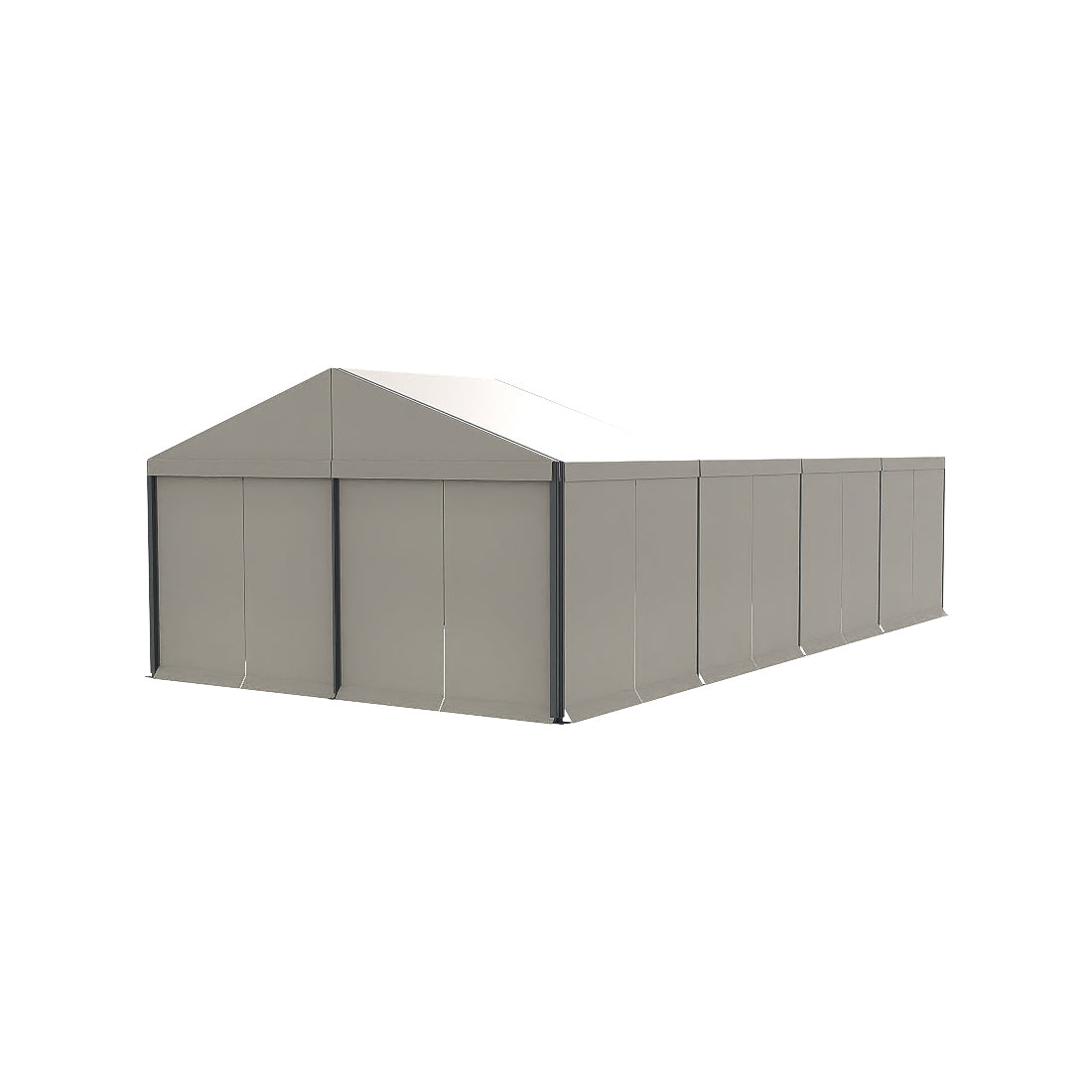

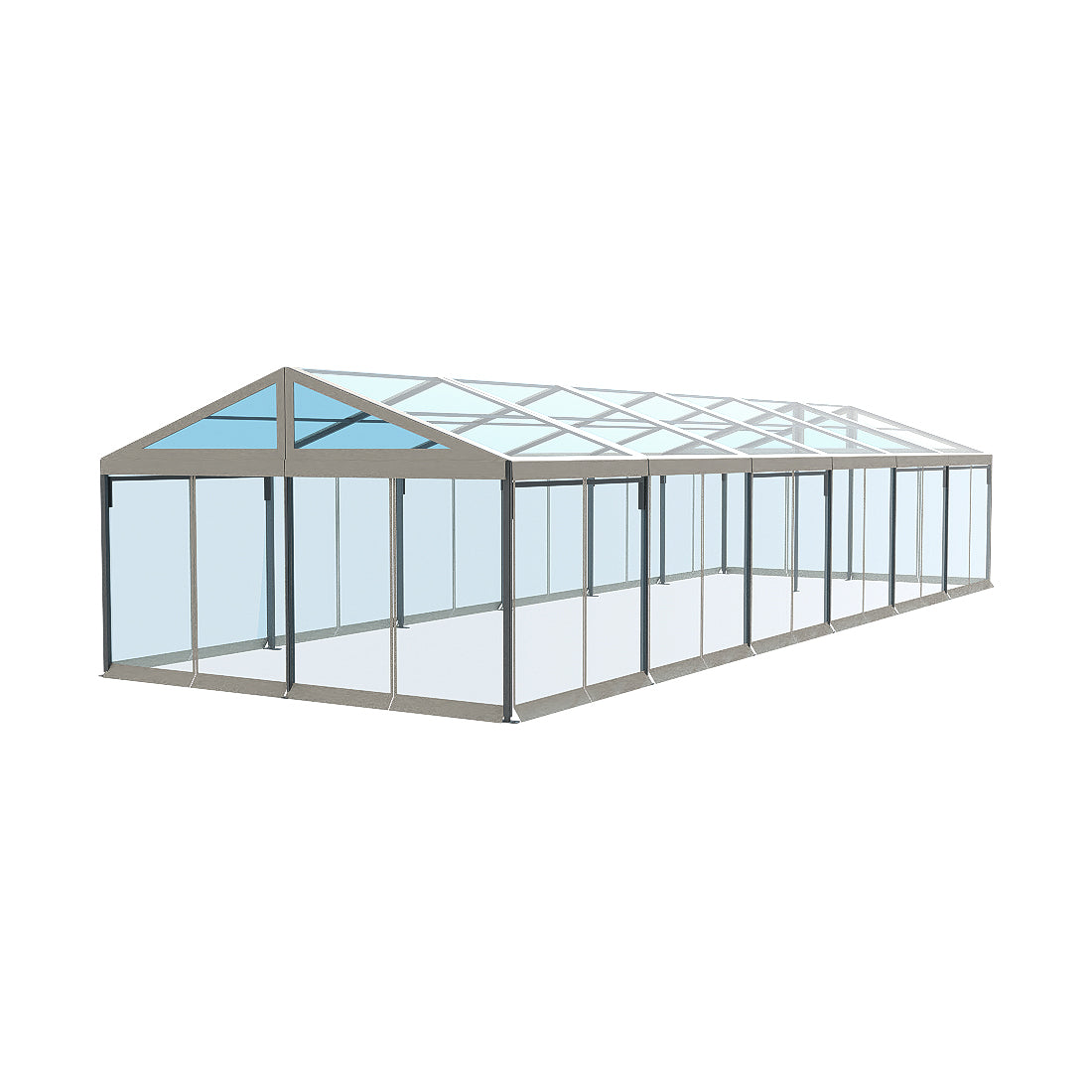

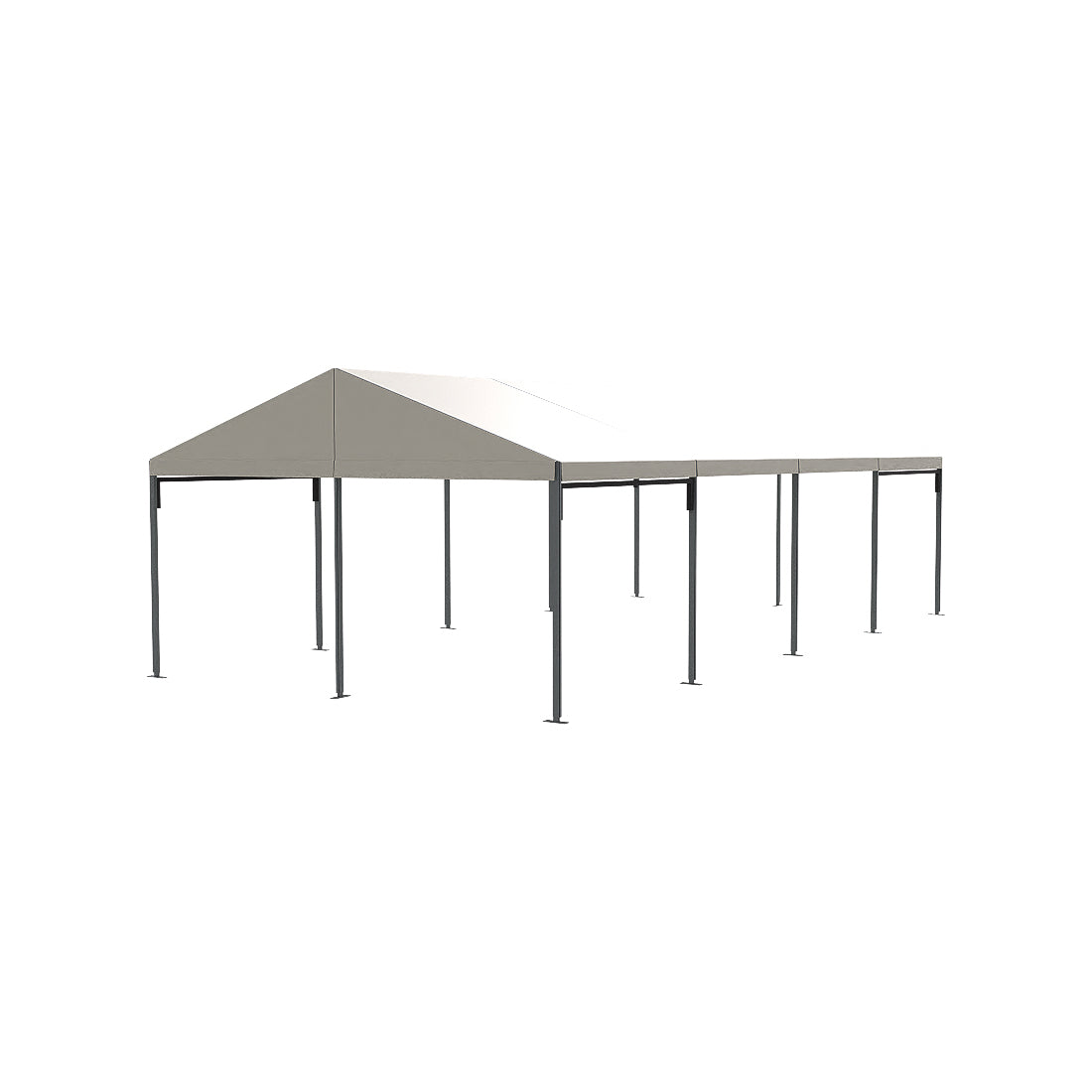

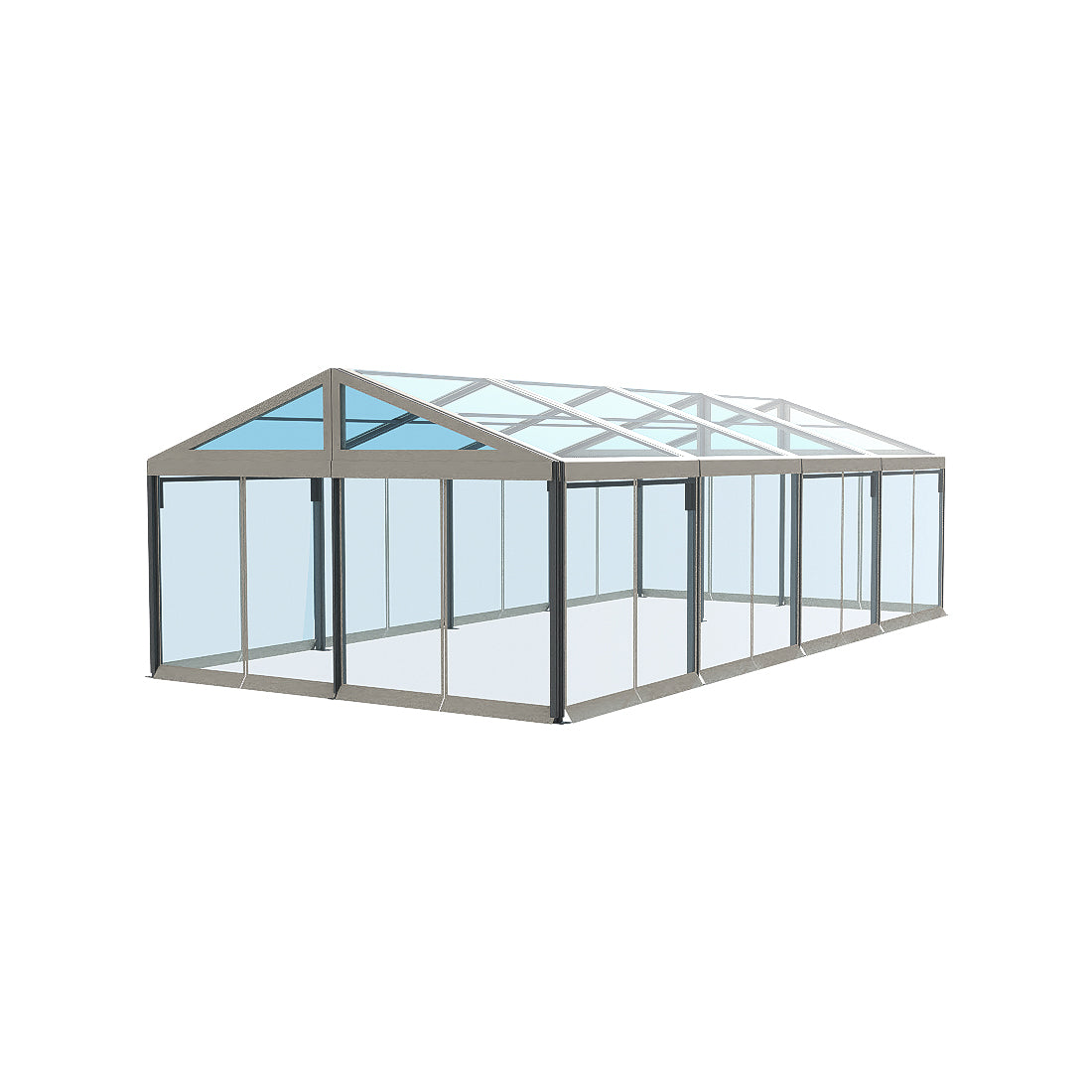

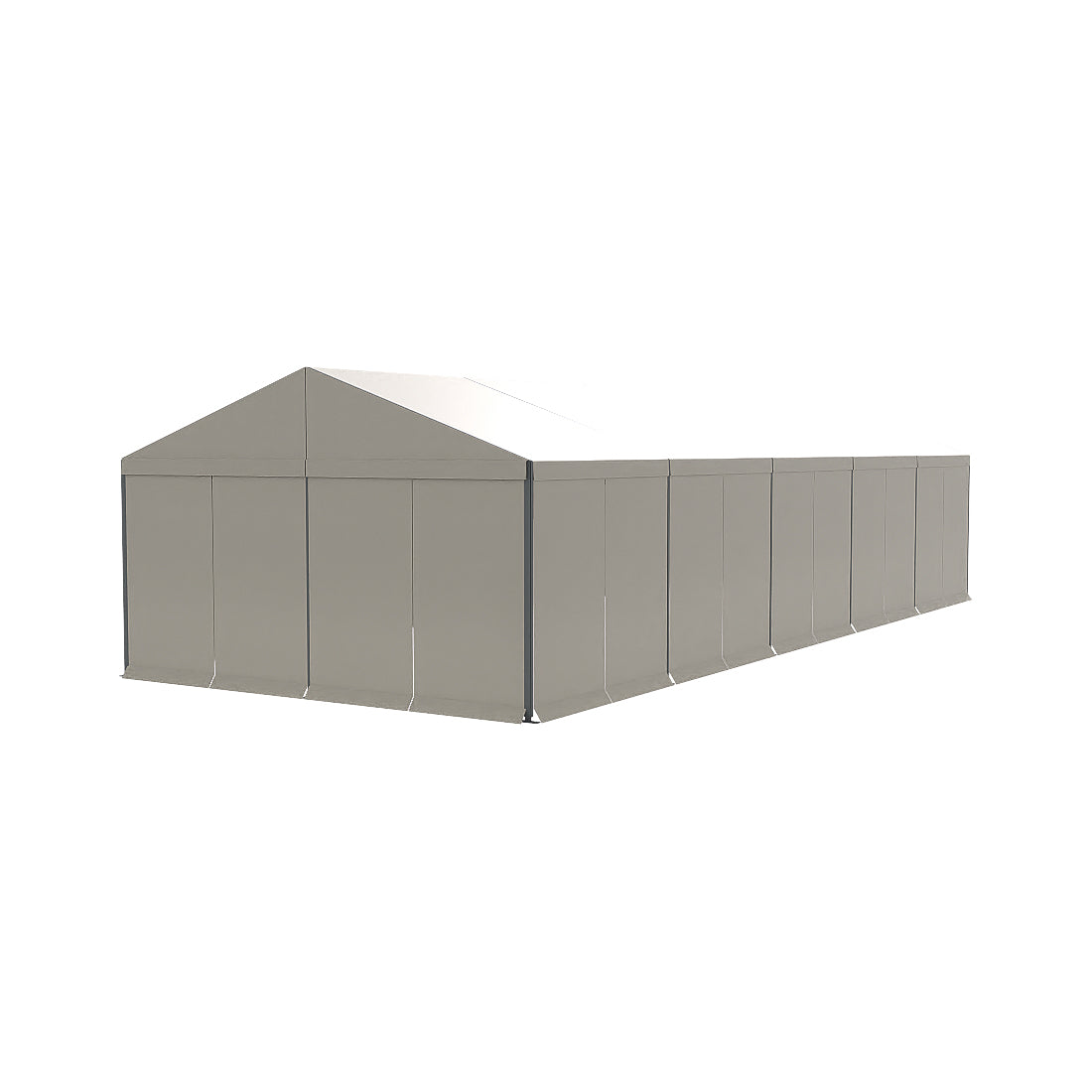

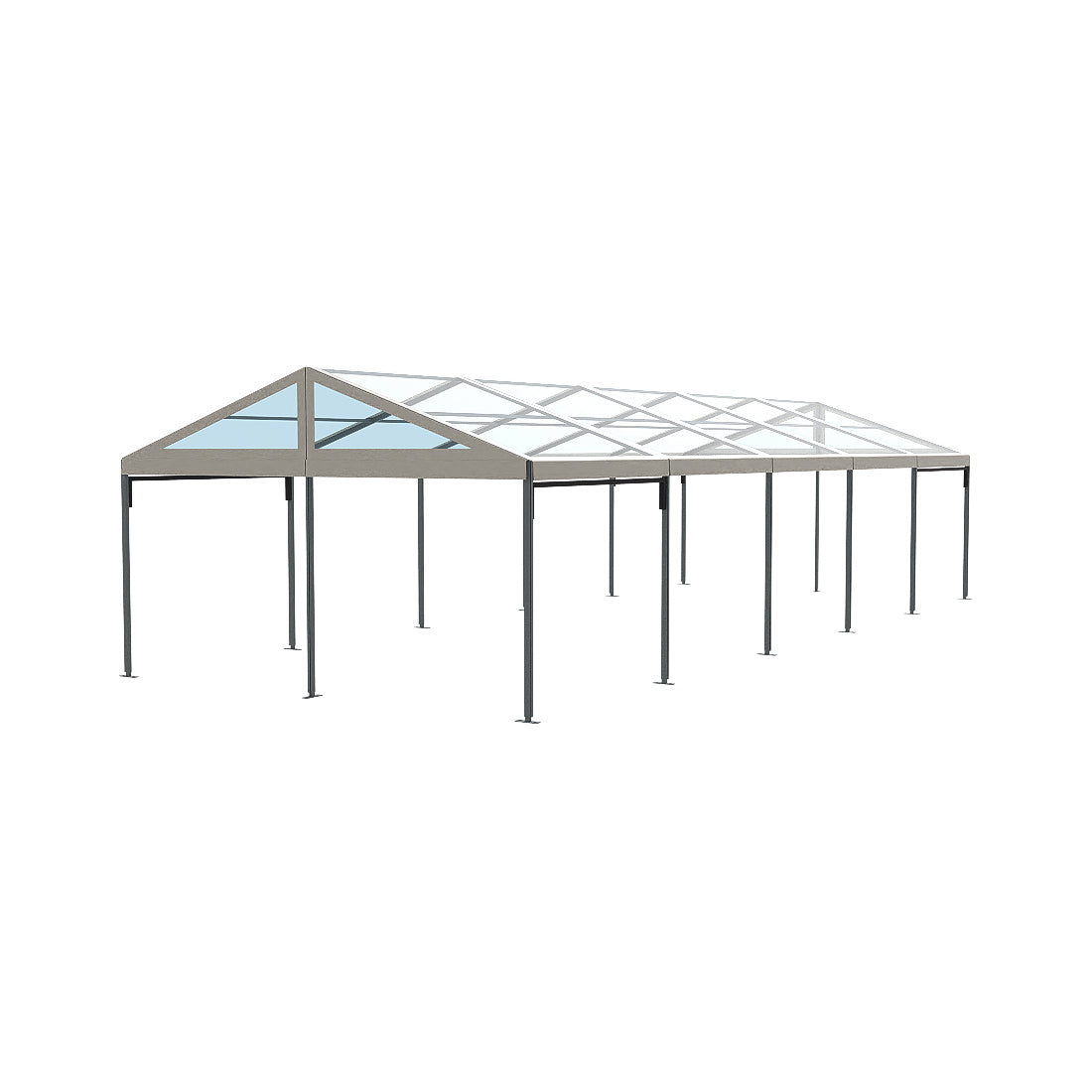

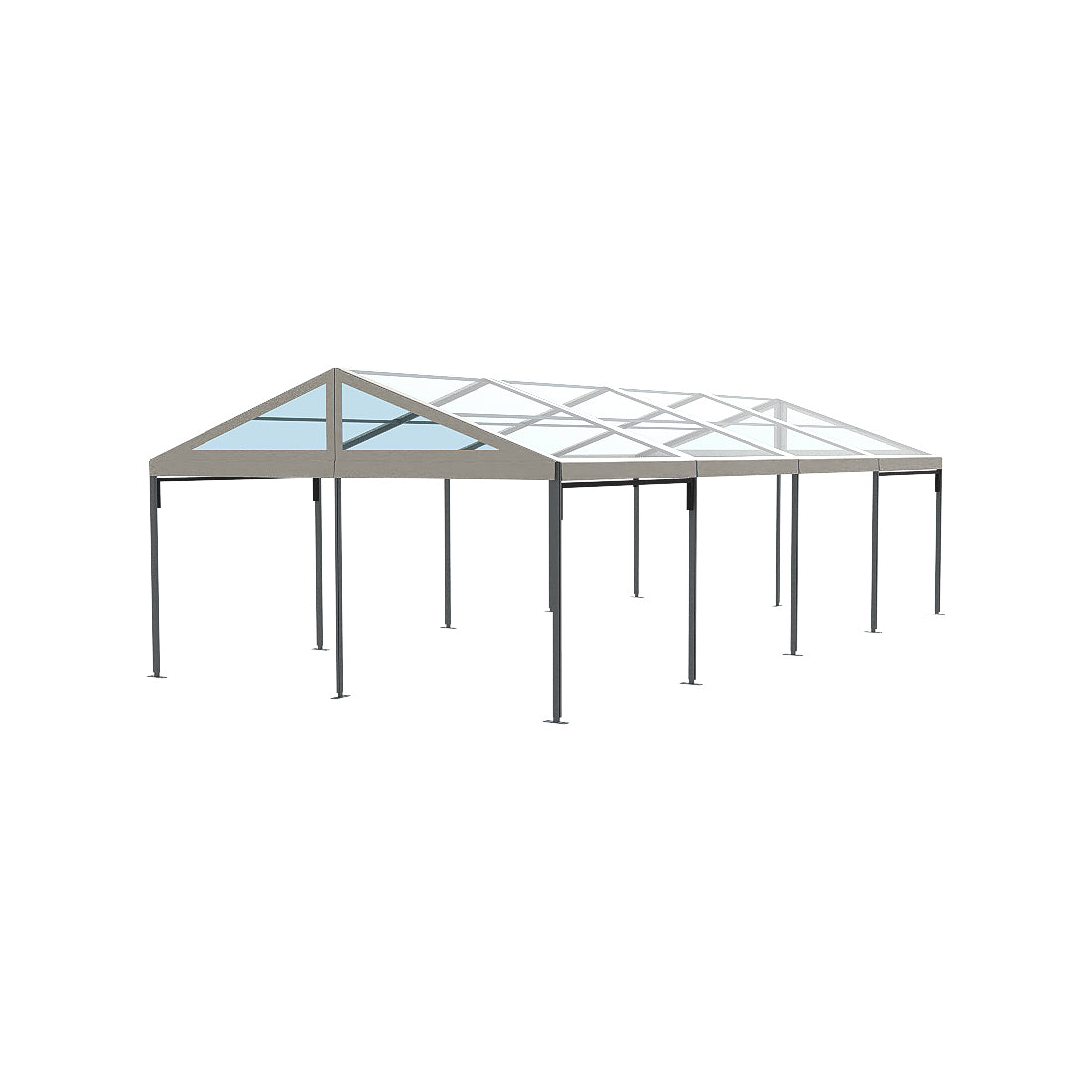

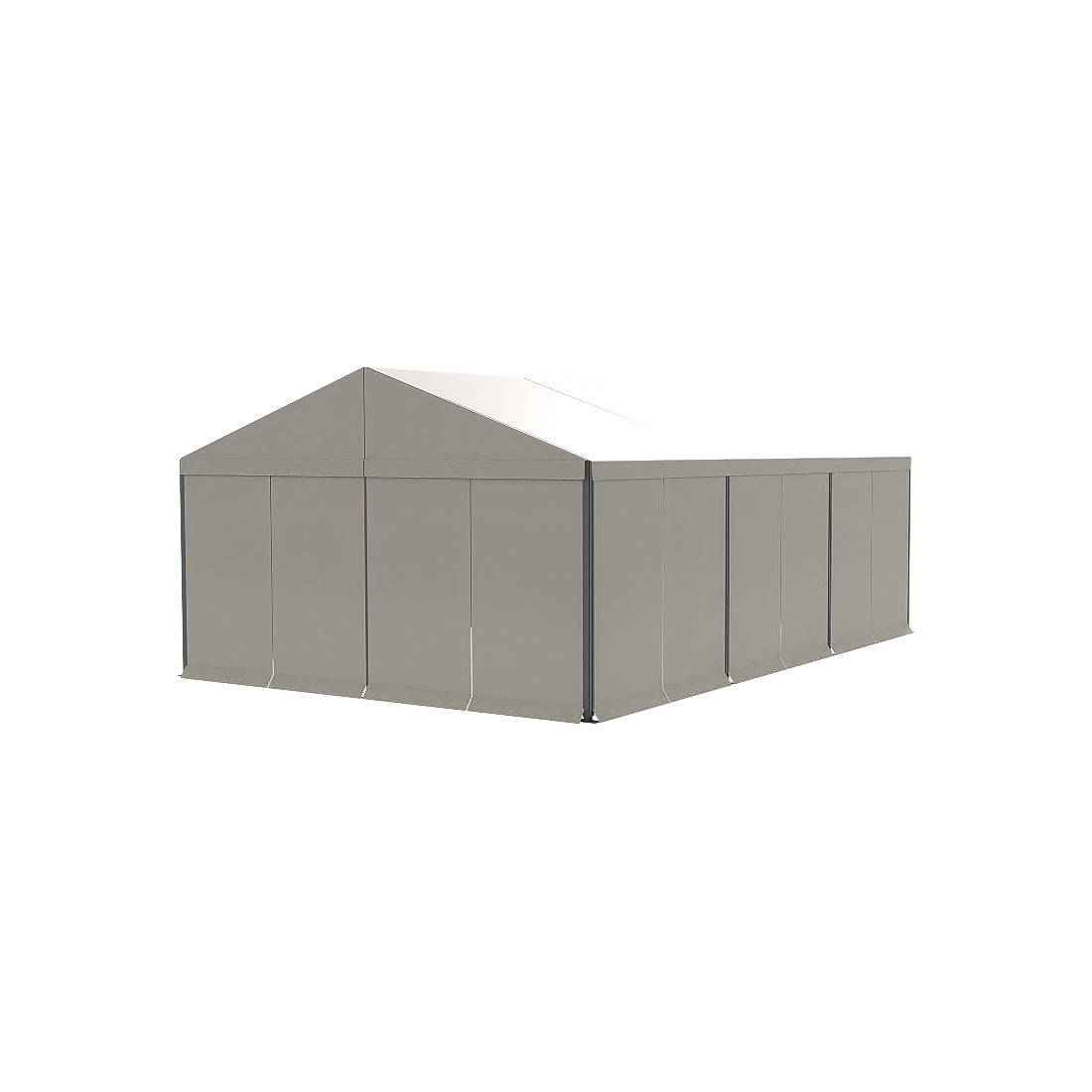

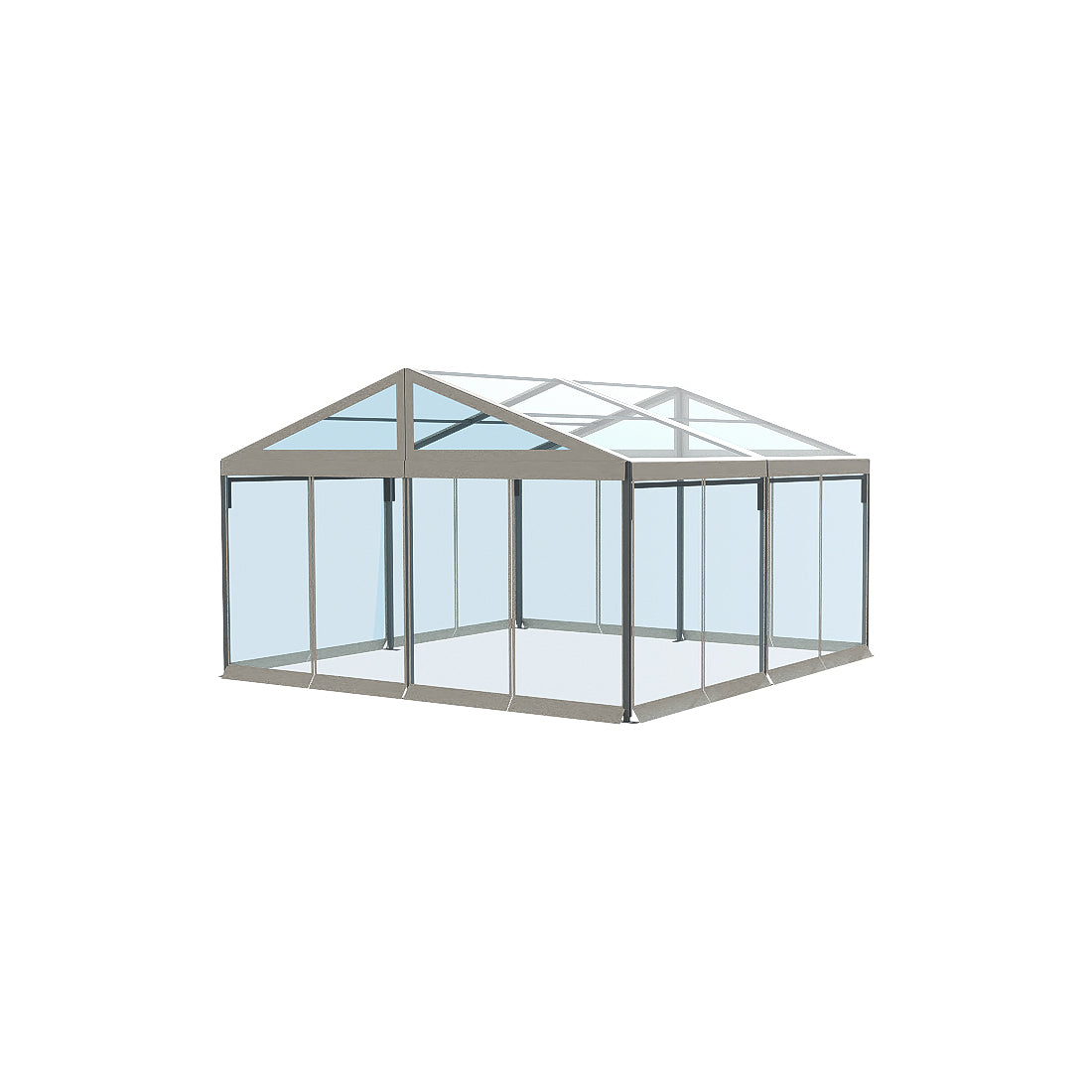

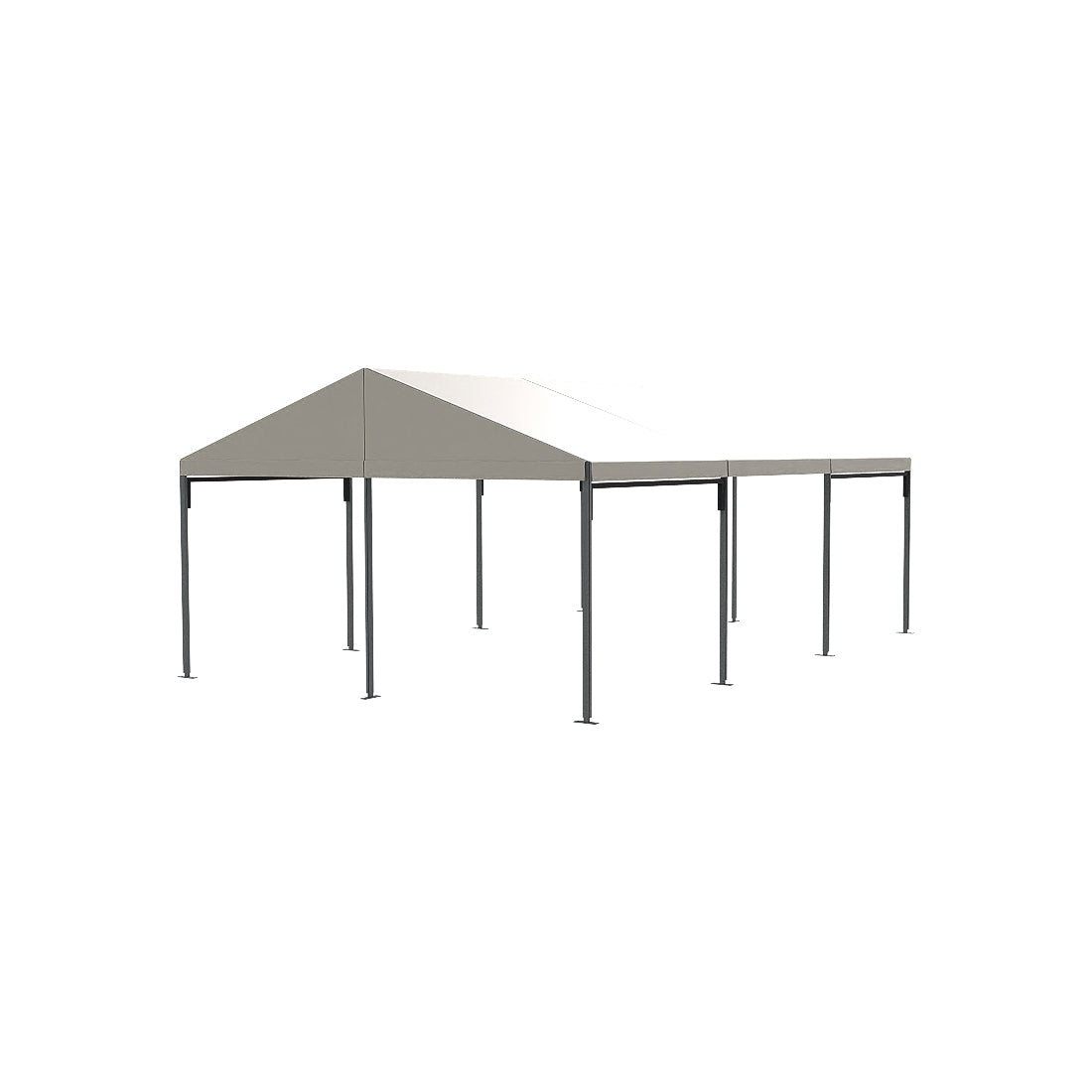

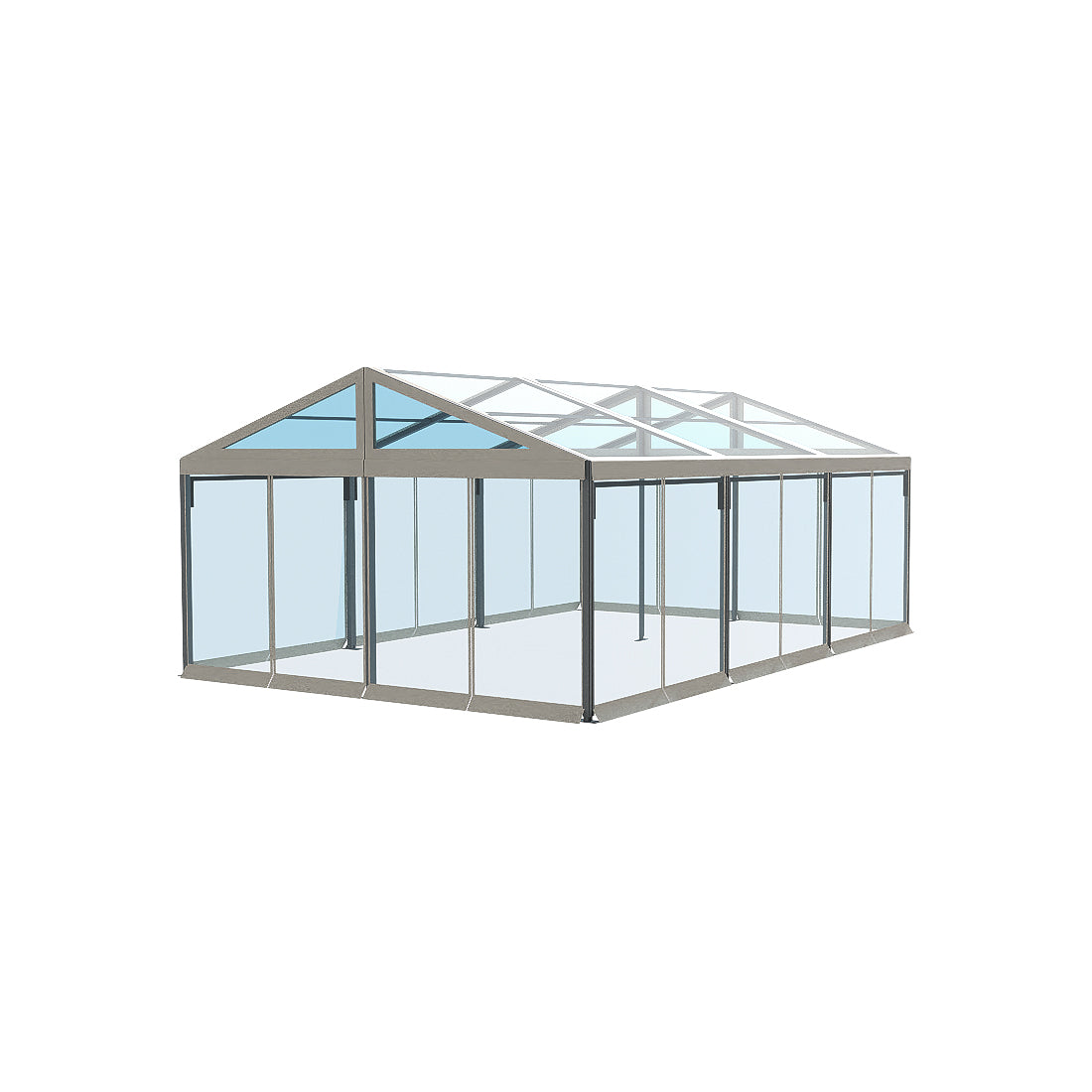

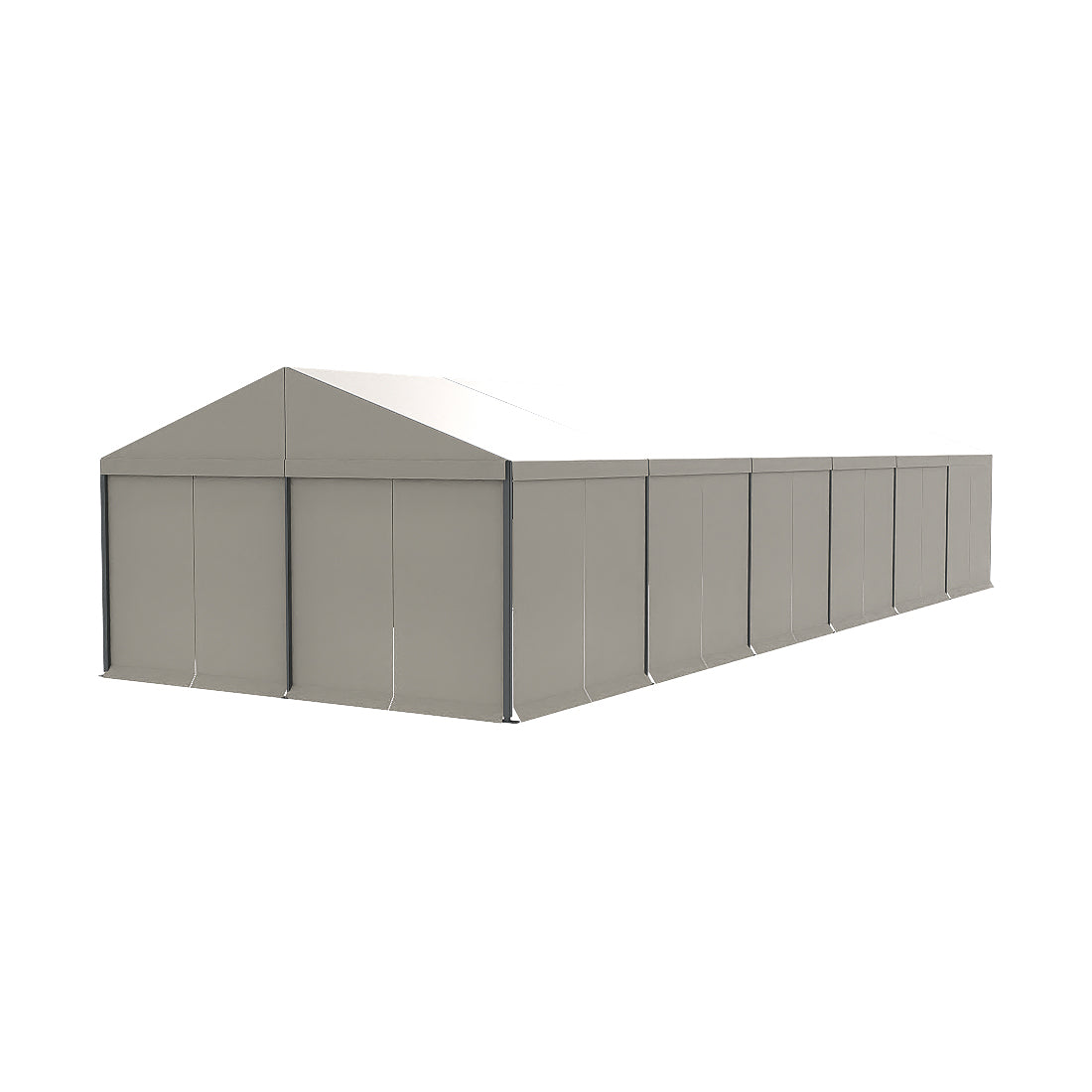

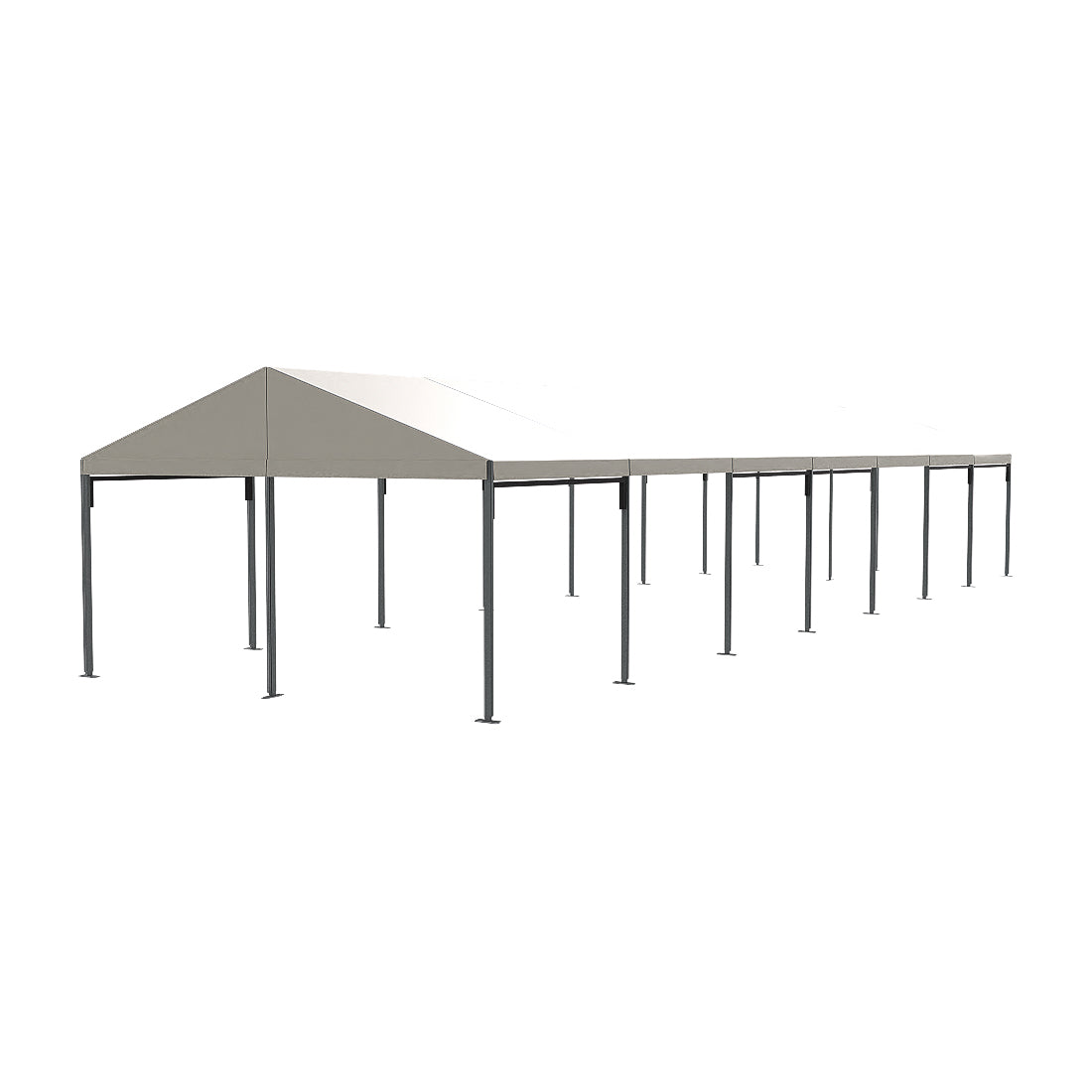

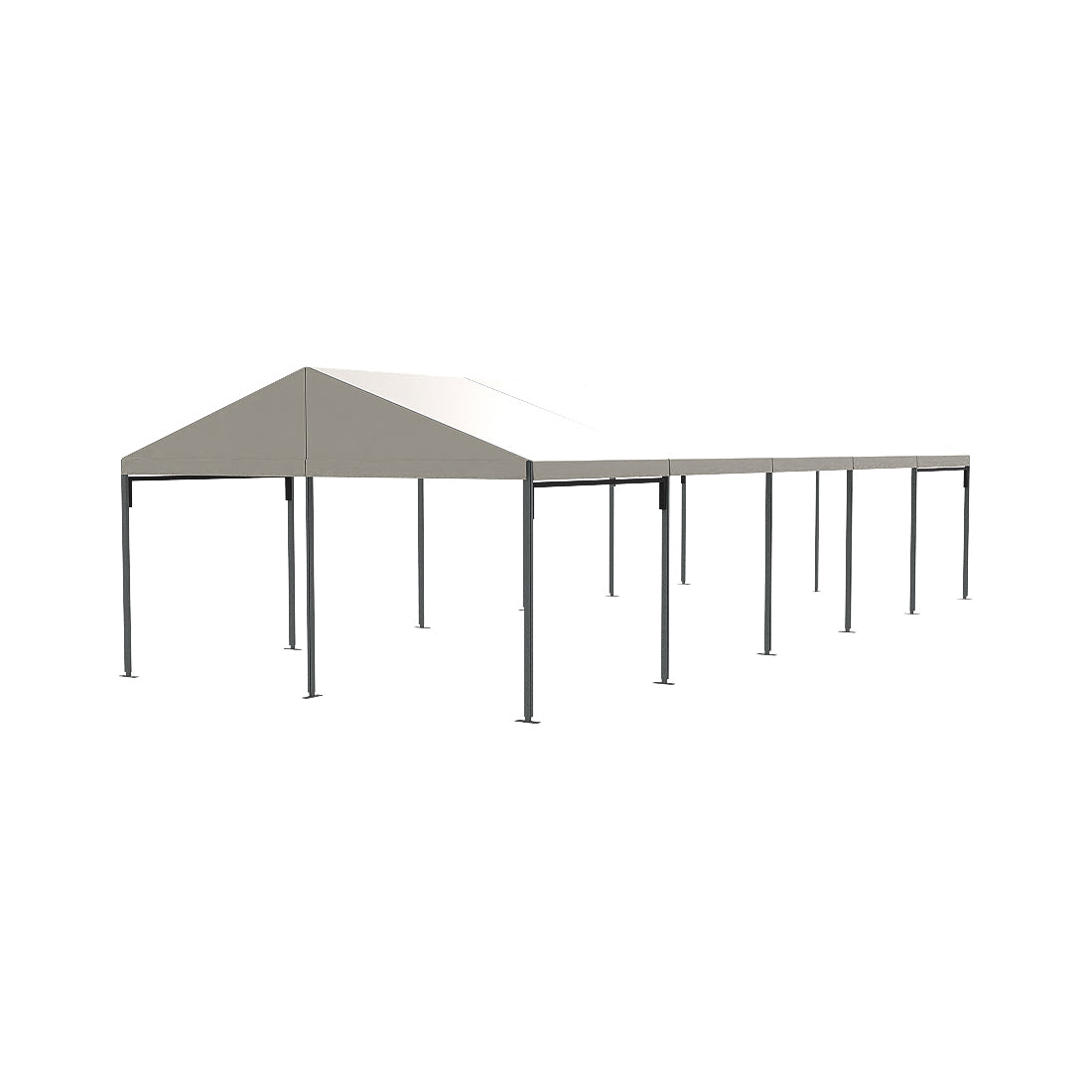

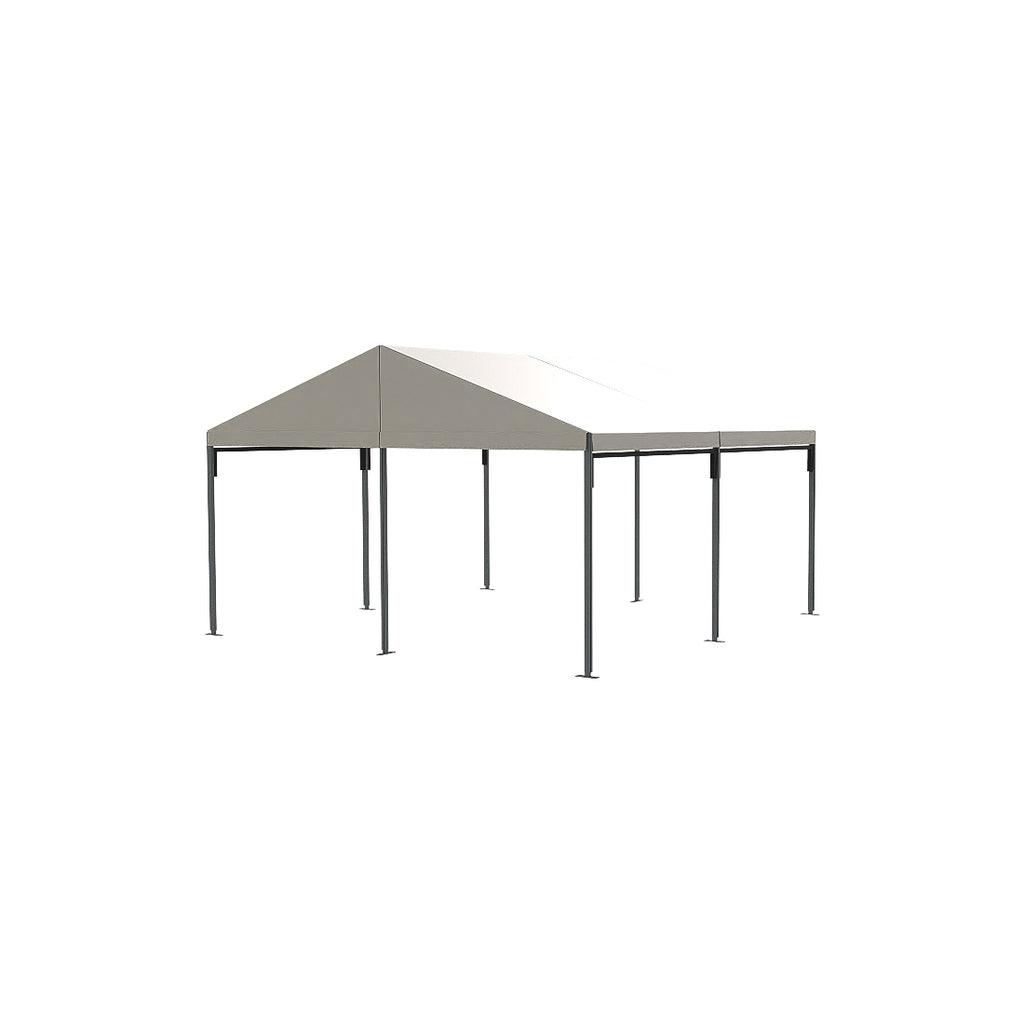

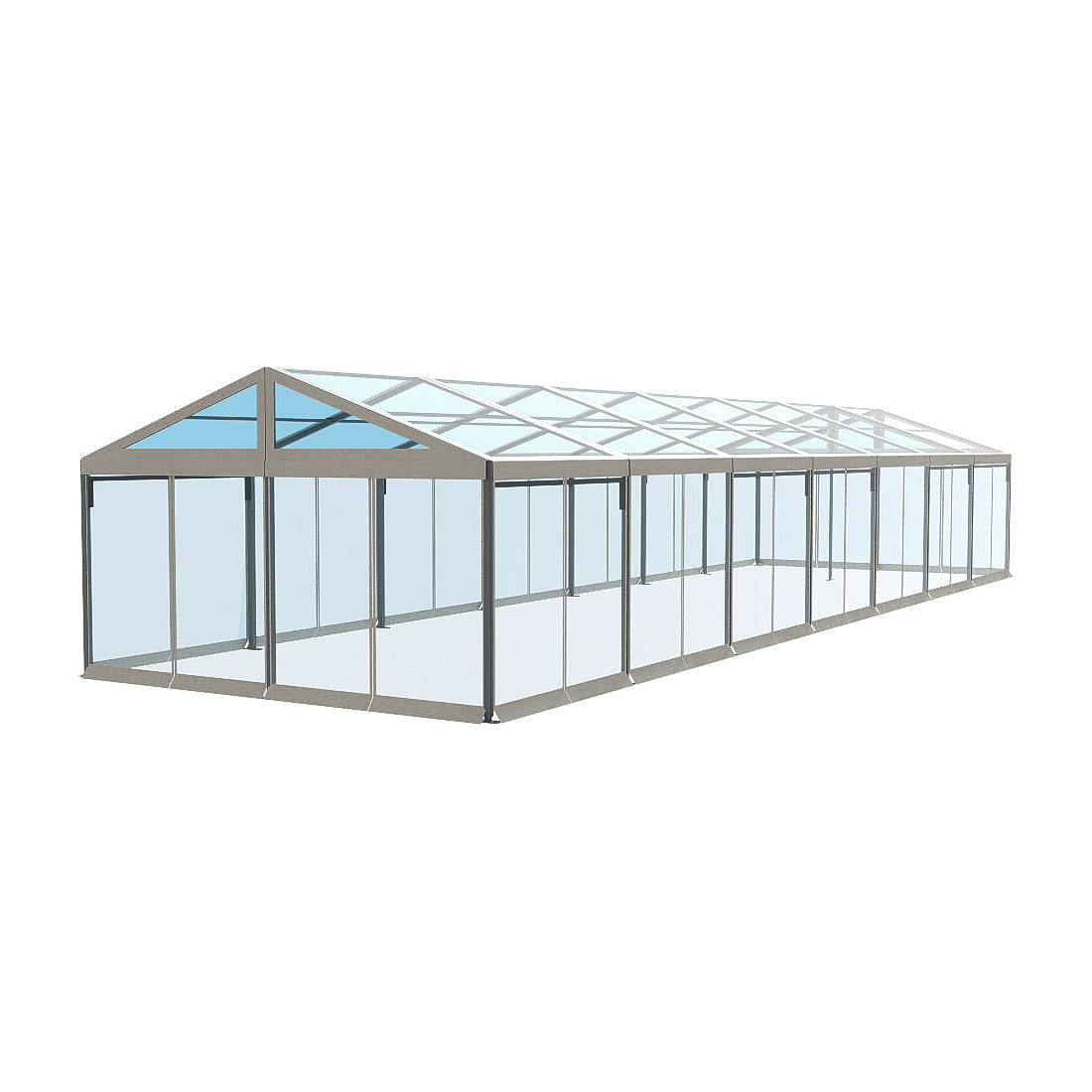

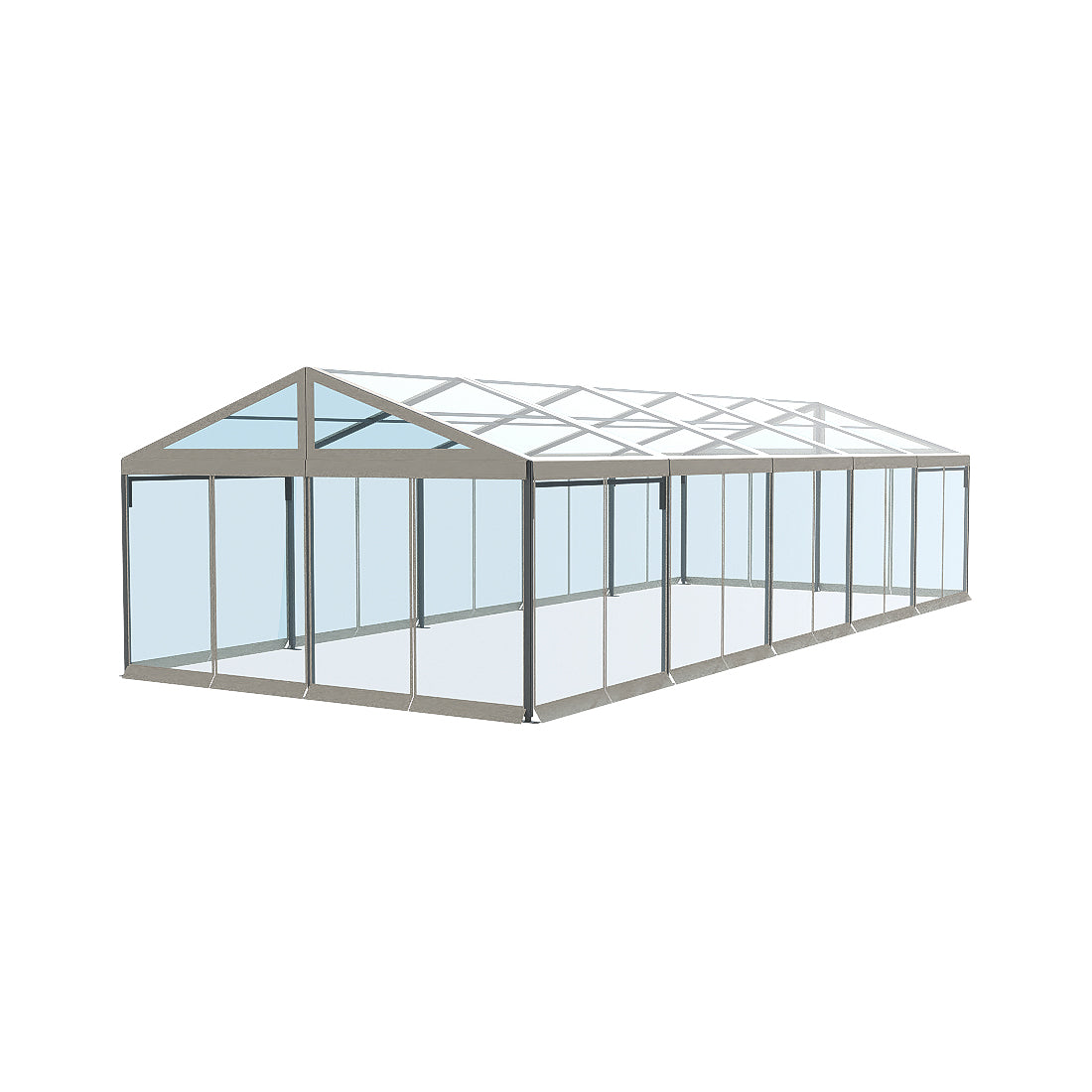

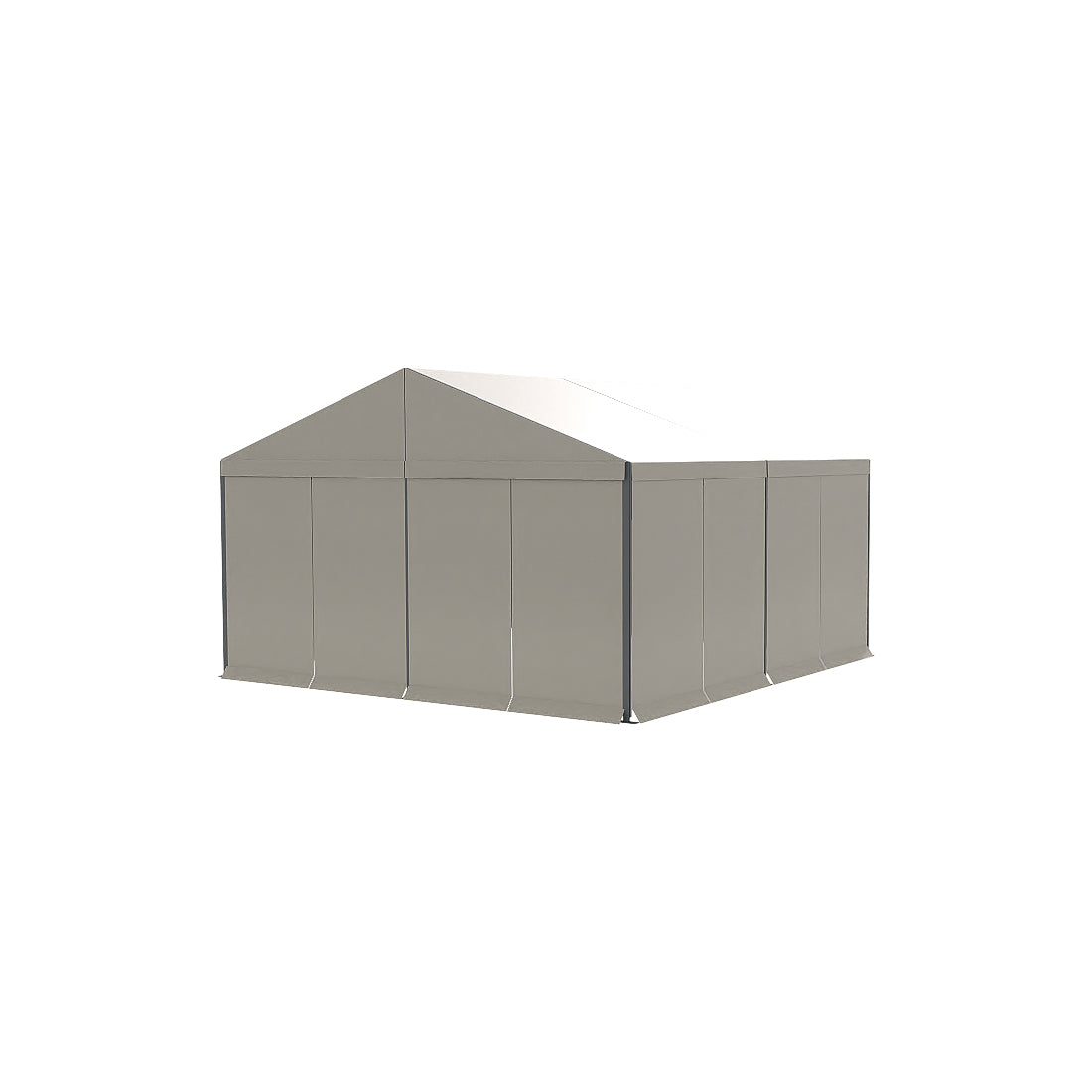

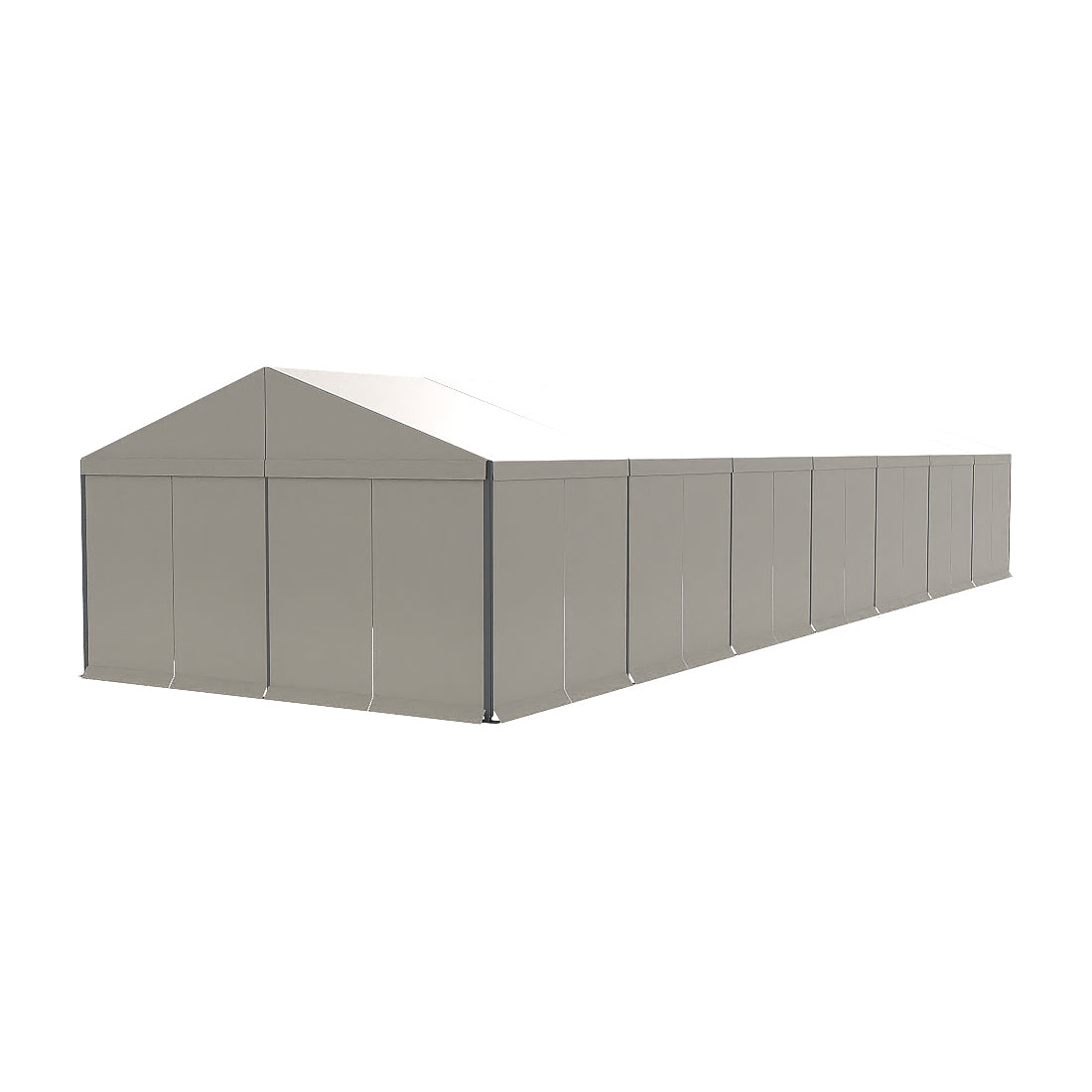

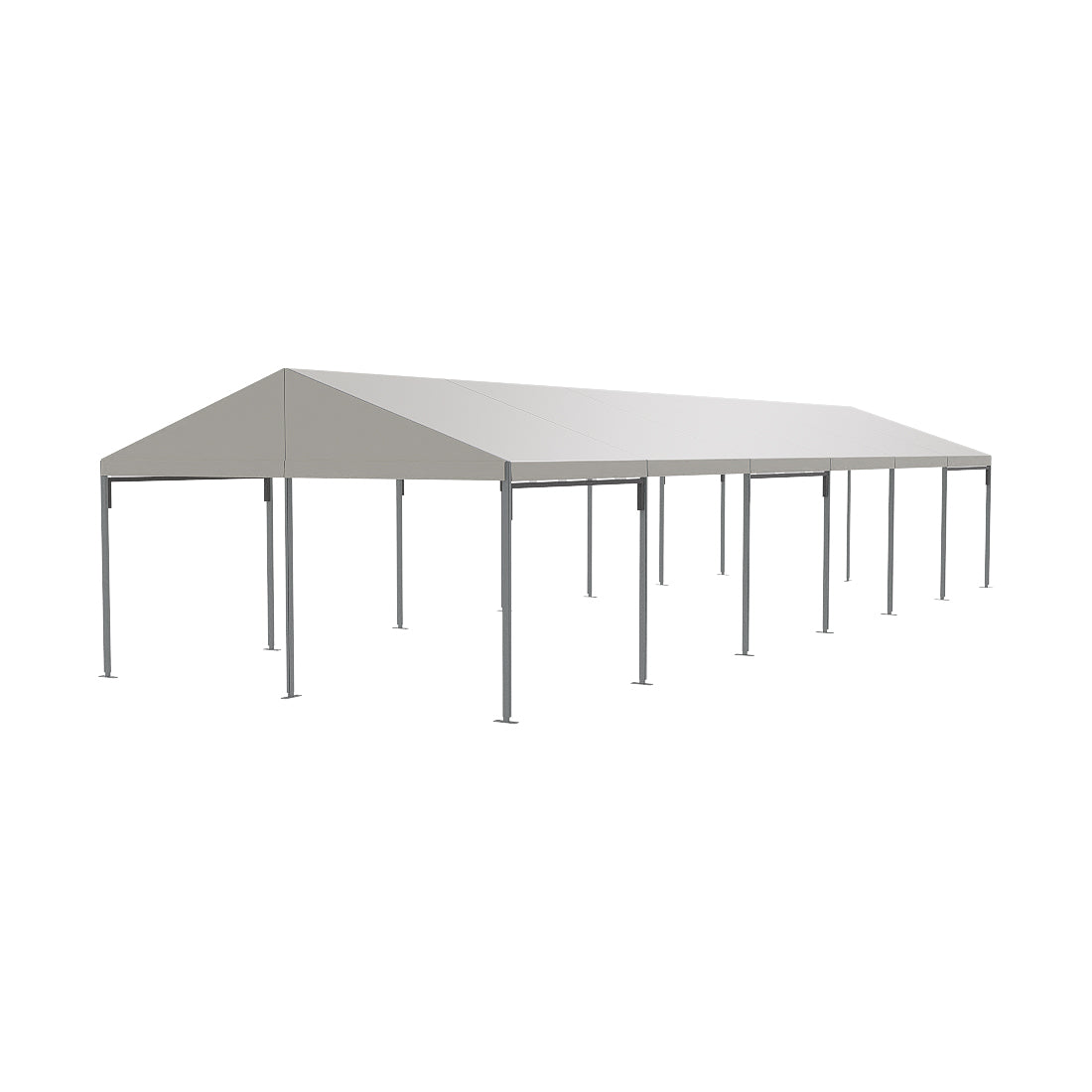

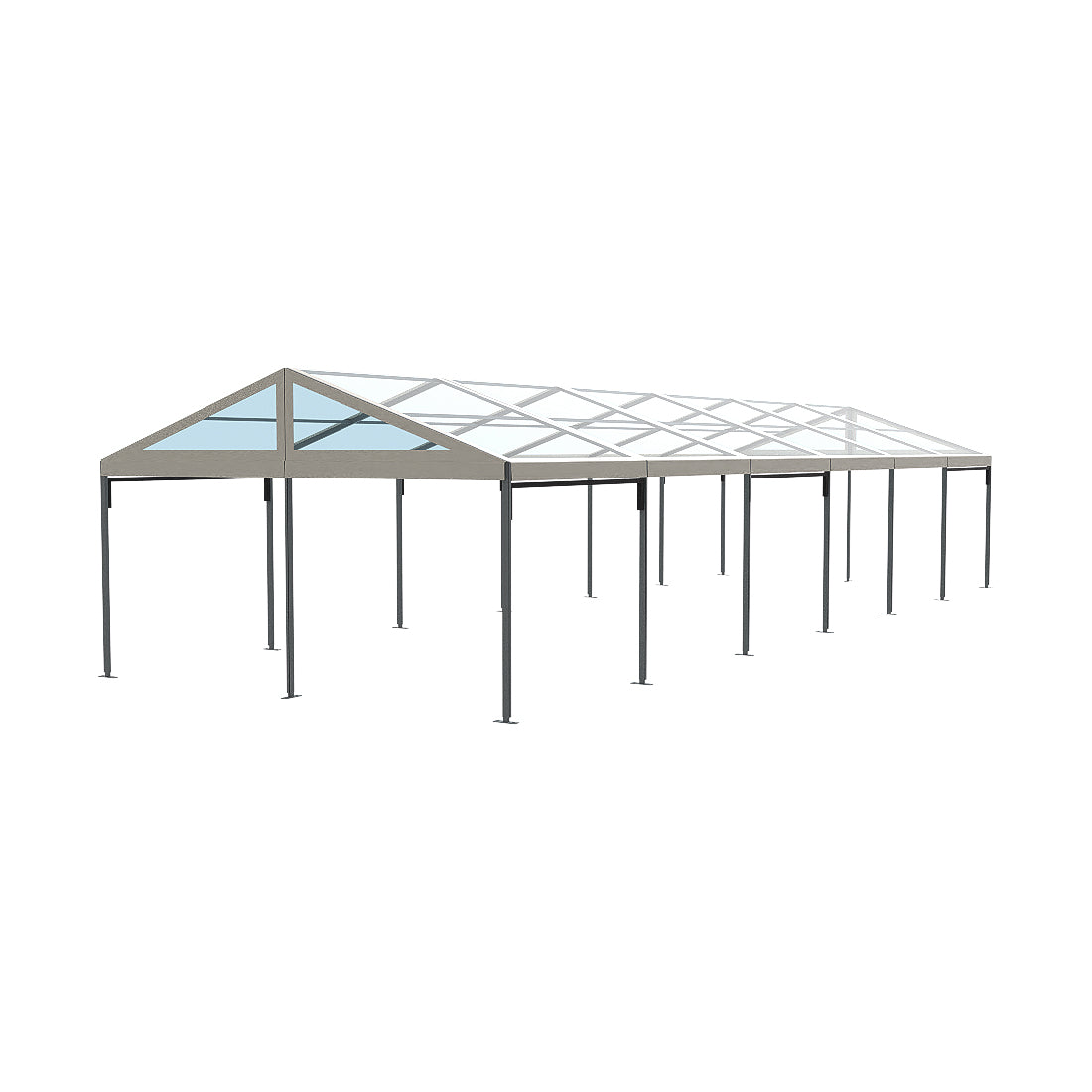

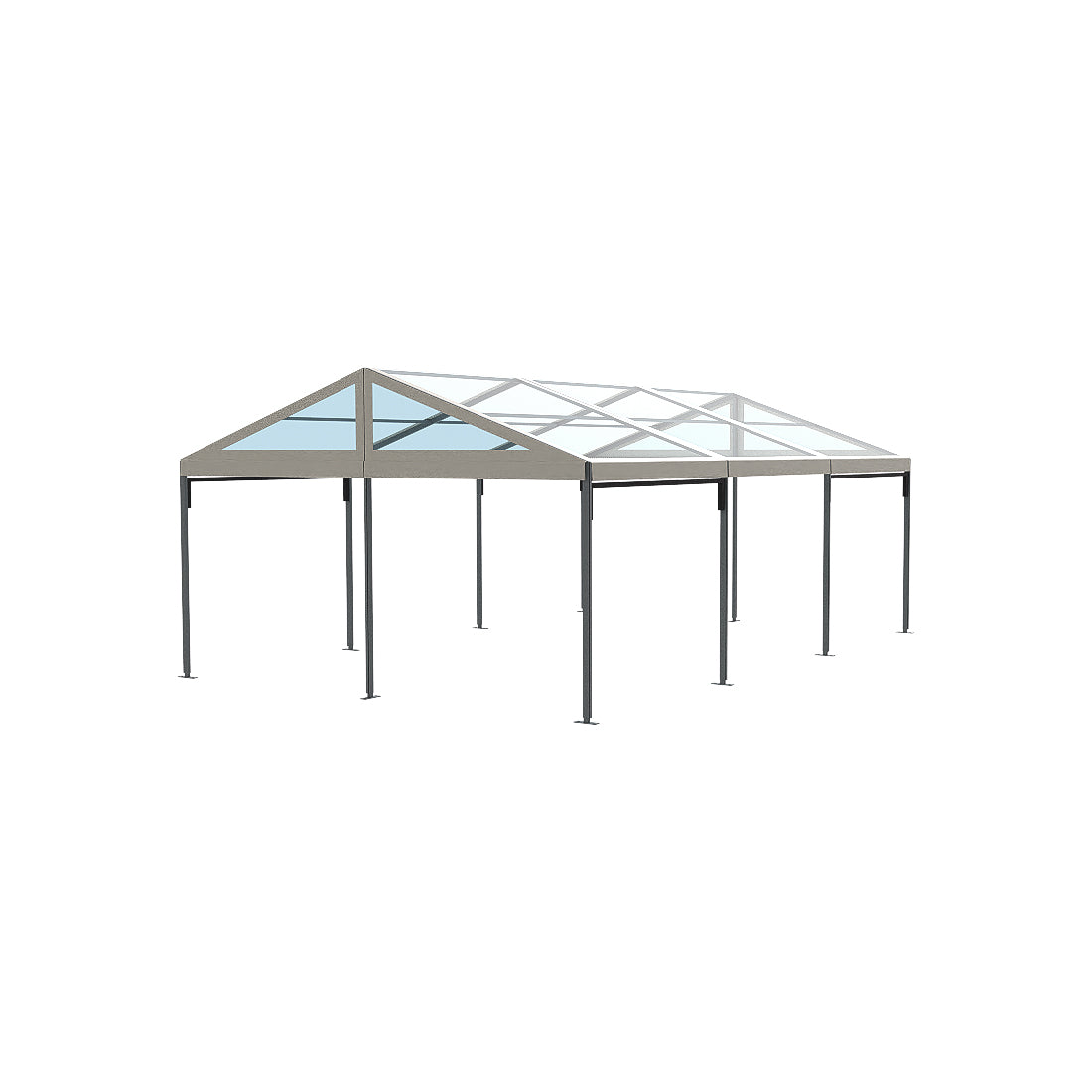

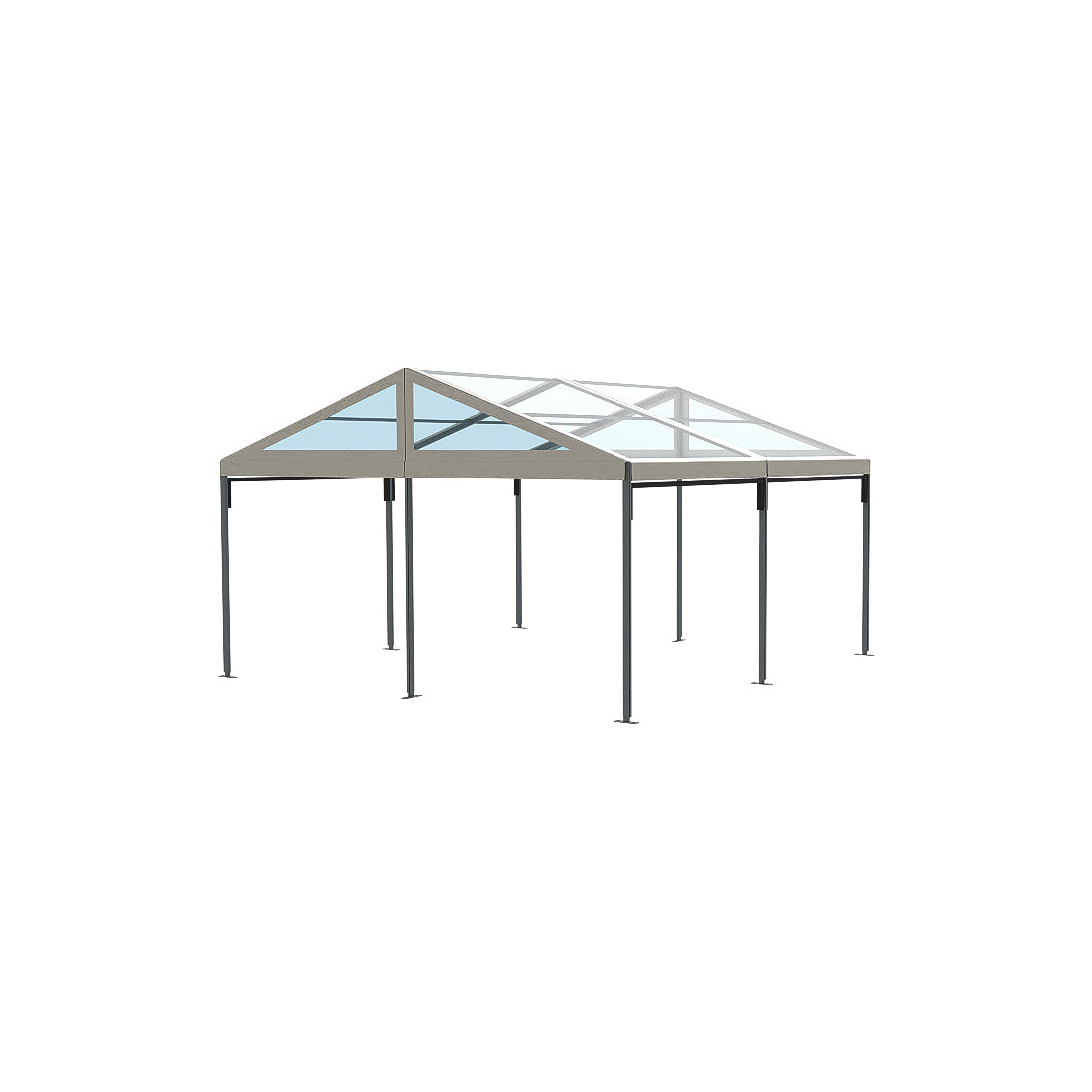

6m Wide Function Standard

The Function Standard (FS) Series features our professional 3m bay event marquees. This marquee series is available with a complete range of accessories, including sidewalls with clear windows, roof lining glass wall and door systems, and ABS solid walling and flooring systems.

Contact us for 4m / 5m wide.

Specification Sheet >    Instruction >    Product Comparison >   3m 4m 5m Engineer Cert >    6m 8m 9m Engineer Cert >    PVC Fire Retardant Cert >

Clear Span Width	6m
Eave Height	2.6m
Ridge Height	3.77m
Roof Pitch	20º
Bay Distance	3m
Roof Fixing	Bar tensioning
Frame Profile	84 x 48 x 3mm (2-channel)
Max Allowed Windspeed	80km/hr 0.3kn/m2
Eave Connectors	Hot-dip galvanized steel insert
Frame Material	Hard pressed extruded aluminium 6061/T6 (13HW)
Roof Fabric	850gsm white or coloured PVC / 950gsm clear PVC / 650gsm white PVC
Frame Warranty	10 years
Roof Warranty	5 years white or coloured PVC / 2 years printed or clear PVC





Capacity Chart

Size	Area (sqm)	Cocktail Standing	Theatre Seating	Seating Trestle Table	Seating Round Table
6m x 6m	36	50	24	48	40-48
6m x 9m	54	75	48	72	60-72
6m x 12m	72	100	72	96	80-96

This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.



Theatre seating
Includes a 1m centre aisle and a 3m section at the front for presentation/ceremony

Trestle tables
2.4m trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables

Round tables
1.8m round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.



Add-on accessories available (contact us for pricing)
