Description

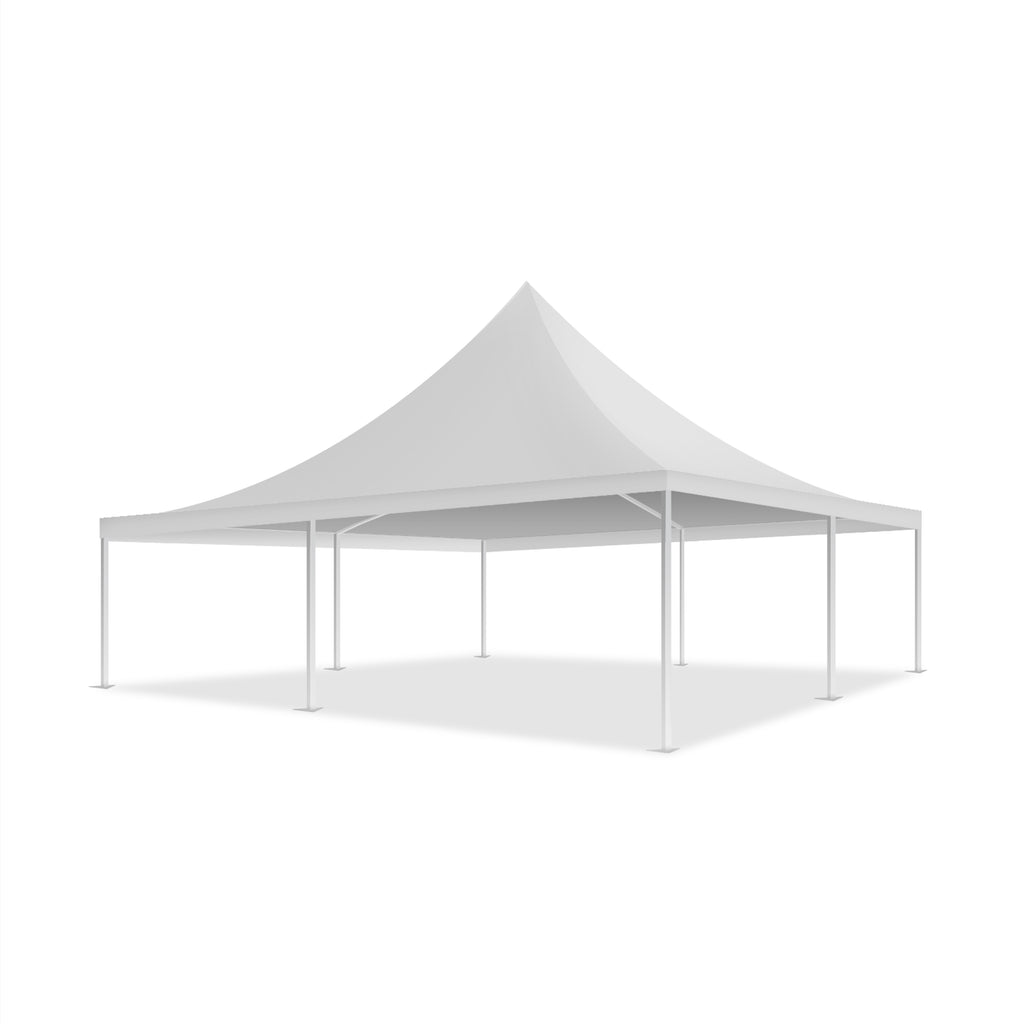

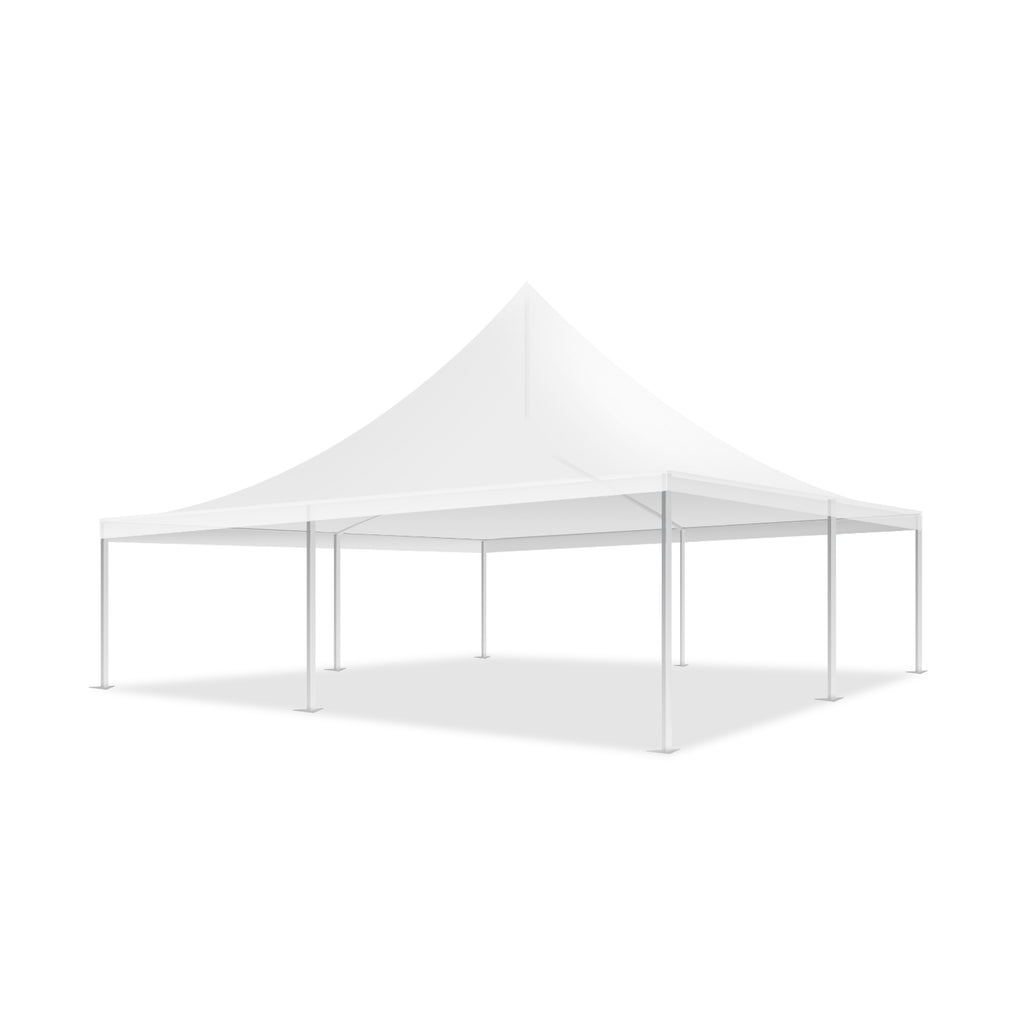

Pinnacle 8m x 8m
The 8m x 8m Pinnacle Semi-Permanent Tent is a durable and stylish outdoor shelter designed for long-term use. Built with a heavy-duty aluminium frame and premium roof fabric, it offers superior weather resistance. Perfect for restaurants, resorts, and event spaces. Upgrade your setup today!
Package Includes: Frame, roof, steel pins & steel pin pullers.
Features
• 122mm aluminium frame profile
• Iconic pagoda-style design
• Threaded rod tensioner
Specification Sheet Download > Instruction > Wind Rating Cert > Fire Test Cert > 8m Engineer Cert > Price List >
| Specifications | 8m x 8m |
| Eave Height | 2.6m |
| Ridge Height | 6.4m |
| Clearance | 2m |
| Pitch Height | 2.2m |
| Frame Profile | 122 x 68 x 5.5mm |
| Max Allowed Windspeed | 80km/hr | 0.3kn/m2 |
| Eave Connection | Hot-dip galvanized steel insert |
| Framework Material | Hard pressed extruded aluminium 6061/T6 (13Hw) |
| Frame Weight | 492kg |
| Roof Weight | 30.5kg |
| Roof Fabric | 950gsm clear PVC 850gsm white PVC 650gsm white PVC walls |
| Frame Warranty | 10 years |
| Roof Warranty | 2 years clear PVC / 5 years plain PVC |
